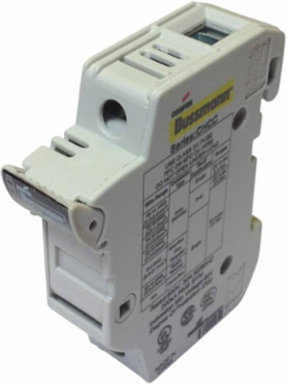

Bussmann CHCC1DU Modular Fuse Holder 48 Vdc 30A Single-pole 2.875 Inch Height
- MPN: CHCC1DU
- UPC: 051712362658
- PPN: BUS-CHCC1DU
CAD
$27.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Modular Fuse Holder 48 Vdc 30A Single-pole 2.875 Inch Height
Features
- The Bussmann CHCC1DU is a specialized 30-Amp, 600V Class CC fuse holder designed for standard 35mm DIN rail mounting. Its compact, modular footprint allows it to snap securely into place alongside other control components, making it a space-saving essential for Canadian industrial control panels and motor control centers.
- Engineered with an IP20 "finger-safe" rating, this holder prevents accidental contact with live electrical terminals, significantly increasing safety for maintenance personnel. The integrated rejection feature ensures that only high-interrupting Class CC fuses can be installed, preventing the dangerous mismatch of fuses that could compromise your equipment's safety rating.
- This specific model is the non-indicating version, favored for its simplicity and reliability in high-vibration environments. For technicians, the easy-to-operate pull-out drawer design allows for rapid physical inspection and replacement of fuses without the need for specialized tools, reducing downtime in critical manufacturing or HVAC applications.
- The CHCC1DU features heavy-duty box lug terminals that accommodate a wide range of conductors, typically from #18 to #4 AWG copper wire. The deep wire terminations and high-torque screw clamps ensure a gas-tight, vibration-resistant connection, which is vital for maintaining electrical integrity in the rugged environments of Canadian sawmills, mines, and factories.
- Constructed from high-performance UL 94-V0 flame-retardant thermoplastic, this holder is built to maintain its structural integrity under extreme thermal stress. The high-conductivity tin-plated copper clips ensure low resistance and minimal heat buildup, extending the life of both the fuse and the holder in 24/7 industrial operations.
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 48 Vdc
- Operating Temperature
- -20 to 120 C
- Length/Depth
- 3.438 in.
- Width
- .688 in.
- Class
- Class CC
- Type
- Modular fuse holder
Amperage30 A
Number of PolesSingle-pole
Height2.875 in.
Weight.114 lb
ComplianceRoHS Compliant
Used WithKTK-R, LP-CC, FNQ-R Class CC fuse
