Bussmann CHM1DU Eaton Bussmann series CHM modular fuse holder, Modular fuse holder

Description

Features

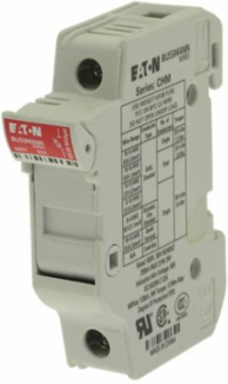

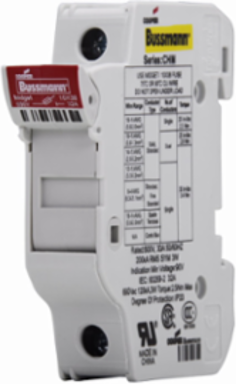

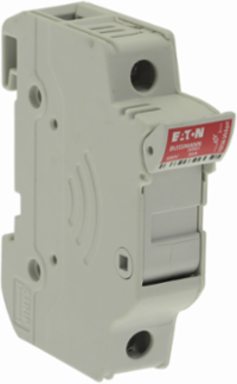

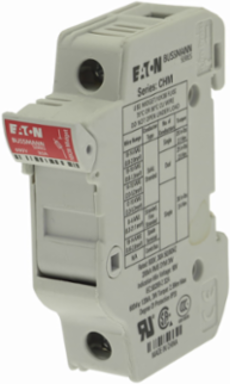

• The Cooper Bussmann CHM1DU is a 1-pole modular fuse holder designed specifically to accept standard 10x38mm cartridge fuses. This universal compatibility ensures you can seamlessly integrate it into your existing electrical assemblies, control panels, or industrial machinery without reworking your setup.
• Engineered for heavy-duty commercial and industrial applications, this robust holder supports electrical loads up to 30 Amps rated for up to 600V AC (UL) or 32 Amps rated up to 690 V AC (IEC). It delivers the reliable power handling and high Short-Circuit Current Rating (SCCR) support your critical control circuits require to keep operations running smoothly.
• Featuring a compact, space-saving 0.63-inch width profile, this single-pole module snaps toollessly onto standard 35mm DIN rails. Its modular architecture also supports multi-pole ganging using standard accessory kits, giving you ultimate installation flexibility in crowded electrical enclosures.
• Built with an IP20 finger-safe rating under IEC standards, this module features a polyamide body that safeguards operators from accidental contact with live electrical components during routine troubleshooting.

Documentation & Downloads

Specifications
