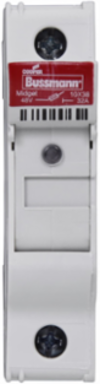

Bussmann CHM1DIU Modular Fuse Holder, 600V (UL), 690V (IEC), 30A (UL), Single-pole, 2.91 Inch Height
- MPN: CHM1DIU
- UPC: 051712362757
- PPN: BUS-CHM1DIU
CAD
$37.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Modular Fuse Holder, 600V (UL), 690V (IEC), 30A (UL), Single-pole, 2.91 Inch Height
Features
- Constructed with a fully enclosed, IP20-rated polyester body, this modular fuse holder eliminates exposed live metal terminals to shield technicians from hazardous electrical shock. This dead-front, finger-safe architecture allows for secure, routine industrial panel maintenance and guarantees your commercial control panel maintains strict compliance with OSHA workplace safety regulations.
- Equipped with a built-in visual indicator that automatically illuminates upon circuit interruption, this holder instantly flags a blown midget fuse inside crowded electrical enclosures. This built-in diagnostic tool eliminates the tedious need for manual multimeter testing, dramatically reducing equipment downtime and allowing maintenance crews to safely swap 10x38mm fuses fast.
- Engineered for effortless snap-on installation onto any standard 35mm DIN rail, this single-pole modular block maximizes valuable real estate inside high-density industrial control panels. The toolless ganging capability and captive, fully backed-out terminals—accepting #18 to #4 AWG wire—drastically speed up both new panel construction and routine retrofitting for motor control circuits, transformers, and solenoids.
- Rated for a full 30 Amps at 600V AC/DC (UL) and engineered specifically for 13/32" x 1-1/2" (10x38mm) midget fuses, this robust Bussmann holder delivers highly reliable supplemental overcurrent protection. It boasts a massive short-circuit withstand rating of up to 200kA (when properly fused), actively preventing catastrophic equipment damage while satisfying stringent UL and IEC 60269-2 certification standards for global power distribution.
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 600V (UL), 690V (IEC)
- Breaking Capacity
- 200 kA rms sym (UL), 120 kA rms sym (IEC)
- Operating Temperature Range
- -20°C to +90°C
- Product Height
- 2.91 in
- Product Width
- 3.28 in
- Terminal Size
- 1 to 25 mm²
- Material
- Polyester (self-extinguishing, UL 94V0 rated)
- Type
- Modular fuse holder
Amperage Rating30A (UL), 32A (IEC)
Torque Rating3.4 N·m max (UL), 2.5 N·m max (IEC)
Number of PolesSingle-pole
Product Length/Depth.69 in
Product Weight.22 lb
Terminal RatingIEC: 1 to 25 mm² 70°C PVC/Copper cable solid, stranded, fine stranded, spade lug, comb bus bar, single and dual
Flammability RatingUL94V0
Used With10 mm x 38 mm Fuse
