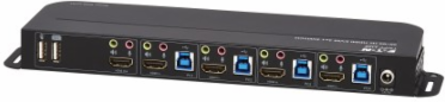

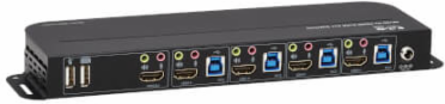

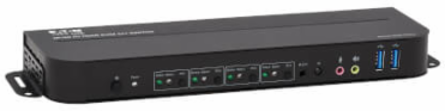

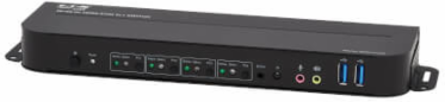

Tripp Lite B005HUA4 KVM Switch, 4-Port, HDMI, USB 3.0, 4K 60 Hz, HDR, HDCP 2.2, IR
- MPN: B005HUA4
- UPC: 037332254900
- PPN: TRP-B005-HUA4
CAD
$465.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
4-Port HDMI/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing
Features

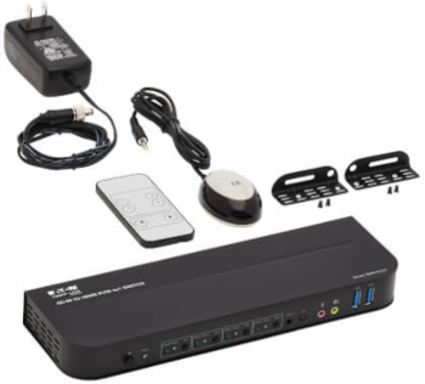

- IR extender and IR remote control included for wireless port switching
- External power supply included (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A) with interchangeable plug adapters (US, UK, EU, Australia)

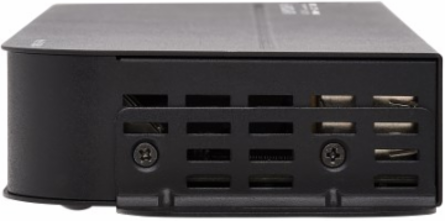

- Rack/surface mounting brackets included
Documentation & Downloads
Specifications
Performance
| Max Supported Video Resolution | 4K x 2K (4096 x 2160) @ 60 Hz |
|---|---|
| Max Supported Color Depth | 36-bit Deep Color |
| Chroma Sub Sampling | 4:2:0; 4:2:2; 4:4:4 |
| HDCP Specification | 1.4; 2.2 |
| ESD Protection | +/- 8kV (air-gap discharge) & +/- 4kV (contact discharge) |
| AC Power Adapter Input | 100-240V / 50/60Hz / 0.6A |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Operating Humidity Range | 10% to 85% RH (No Condensation) |
| Technology | HDMI; USB 2.0 (High Speed) |
|---|---|
| HDR Support | Yes |
| Audio Specification | 7.1 Surround Sound |
| USB Specification | USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Power Consumption | 12.15 W |
| AC Power Adapter Output | 5V / 3A |
| Storage Temperature Range | 14° to 176°F (-10° to 80°C) |
Material
| Color | Black |
|---|
| Material of Construction | Metal |
|---|
Dimensions
| Number of Users | 1 |
|---|---|
| PC/Server Connections | HDMI |
| Side A - Connector 2 | (2) USB 3.0 A (Female) |
| Side B - Connector 2 | (5) HDMI (Female) |
| Side B - Connector 4 | (10) 3.5mm (Female) |
| LED Indicators | Red (Connection to Power), Green (Online), Blue (Selected Port) |
| Unit Dimensions | 1.020 x 9.570 x 2.950 in |
|---|---|
| Side A - Connector 1 | (3) 3.5mm (Female) |
| Side B - Connector 1 | (2) USB A (Female) |
| Side B - Connector 3 | (4) USB 3.0 B (Female) |
| Port Selection | Hotkey; Mouse; Pushbutton; Remote Selector |
Reference
| Product Warranty Period | 3-year limited warranty |
|---|
