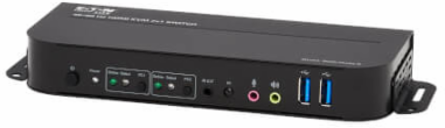

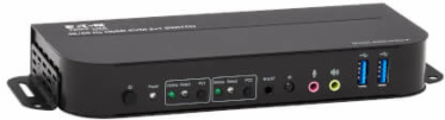

Tripp Lite B005HUA2K KVM Switch, 2-Port, HDMI, USB 3.0, 4K 60 Hz, HDR, HDCP 2.2, IR
- MPN: B005HUA2K
- UPC: 037332254894
- PPN: TRP-B005-HUA2-K
CAD
$369.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2-Port HDMI/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing, USB 3.0 Cables
Features

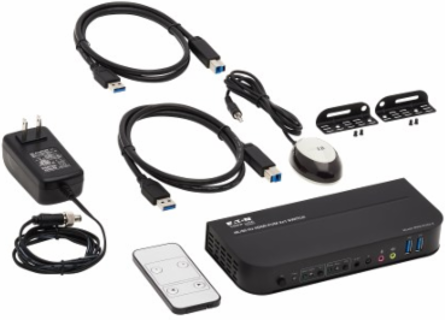

- IR extender and IR remote control included for wireless port switching
- Includes (2) USB 3.0 A-to-B cables (M/M)
- External power supply included (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A) with interchangeable plug adapters (US, UK, EU, Australia)
- Rack/surface mounting brackets included
Documentation & Downloads
Specifications
Performance
- Max Supported Video Resolution
- 4K x 2K (4096 x 2160) @ 60 Hz
- Max Supported Color Depth
- 36-bit Deep Color
- Chroma Sub Sampling
- 4:2:0; 4:2:2; 4:4:4
- HDCP Specification
- 1.4; 2.2
- ESD Protection
- +/- 8kV (air-gap discharge); +/- 4kV (contact discharge)
- AC Power Adapter Input
- 100-240V / 50/60Hz / 0.6A
- Operating Temperature Range
- 32° to 113°F (0° to 45°C)
- Operating Humidity Range
- 10% to 85% RH (No Condensation)
TechnologyHDMI; USB 2.0 (High Speed)
HDR SupportYes
Audio Specification7.1 Surround Sound
USB SpecificationUSB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Power Consumption11.75 W
AC Power Adapter Output5V / 3A
Storage Temperature Range14° to 176°F (-10° to 80°C)
Dimensions
- Number of Ports
- 2
- Unit Dimensions
- 1.020 x 9.570 x 2.950 in

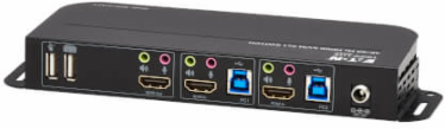

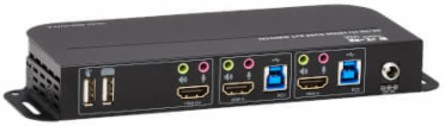

- PC/Server Connections
- HDMI
- Side A - Connector 2
- (2) USB 3.0 A (Female)
- Side B - Connector 2
- (3) HDMI (Female)
- Side B - Connector 4
- (2) USB 3.0 B (Female)
- LED Indicators
- Red (Connection to Power), Green (Online), Blue (Selected Port)
Number of Users1
Unit Weight1.11 lb
Side A - Connector 1(3) 3.5mm (Female)
Side B - Connector 1(2) USB A (Female)
Side B - Connector 3(6) 3.5mm (Female)
Port SelectionHotkey; Mouse; Pushbutton; Remote Selector
Material
- Color
- Black
Material of ConstructionMetal
Reference
- Product Warranty Period
- 3-year limited warranty
