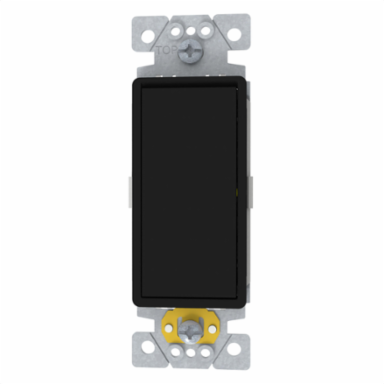

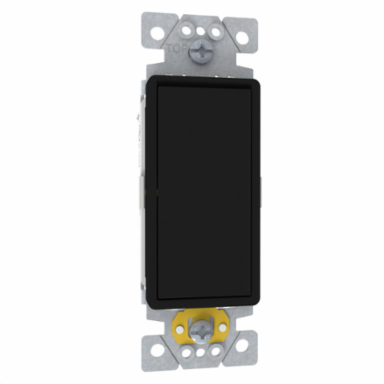

Schneider Electric SQR14131BK Switch, X Series, 15A, single pole, 3 way, black
- MPN: SQR14131BK
- PPN: SCH-SQR14131BK
CAD
$4.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Schneider Electric X Series 15A Single-Pole Switch with side wire clamps. The rated operational voltage of this switch is 120V and 277V. Its matching mounting box can be recessed into the surface of the wall for flush mounting. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. The connection is screw terminals.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Vietnam
Physical Attributes
- Color
- Black
- Main Color Tint
- black
Color Tintblack
Important Information Attributes
- X Main Color Tint
- black
- Local Publishable Date
- 2026-06-23
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Actuator
- rocker
- Device Application
- control
- Energy Efficiency Optimized
- False
- Material
- plastic: strap
- Network Frequency
- 60 Hz
- Number Of Gangs
- 1 gang
- Number Of Poles
- 1
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- Square D X Series
- Surface Finish
- Matte
- Switch Function
- 3-way
- Color Tint
- black
- Ac Current Rating
- 15 A
- [Ie] Rated Operational Current Ac
- 15 A

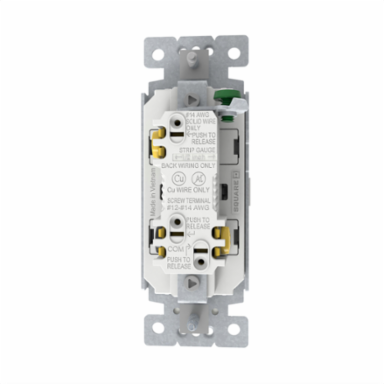

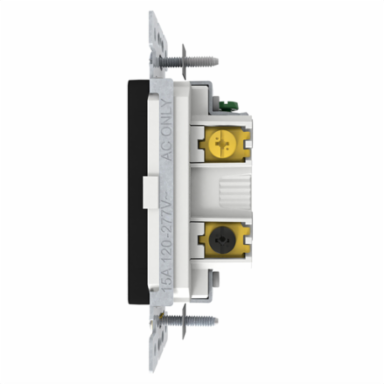

- Connections - Terminals
- phase and neutral 2 screw terminal AWG 14...AWG 12) copper
- Package Weight(Lbs)
- 86.182 g
- Warranty (In Months)
- 24
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Aesthetic NameX Series
Earth Circuitself earthing
Market Segmentresidential
Mounting Modeby screws
Network TypeAC
Number Of Modules1
Number Of Rocker1
Product Or Component Typeswitch
ReturnabilityYes
Sustainable PackagingNo
Targeted Channeldistributor
Main Color Tintblack
Certificate AgencycULus
[Ue] Rated Operational Voltage120 V
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Reach RegulationFree of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- switch
Contractual Warranty Attributes
- Warranty Period
- 2 years
Warranty2 years
Overview Attributes
- Device Presentation
- mechanism with fixing frame
