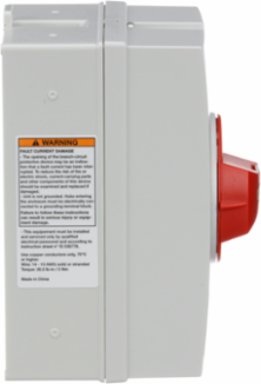

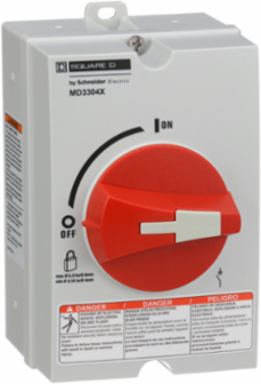

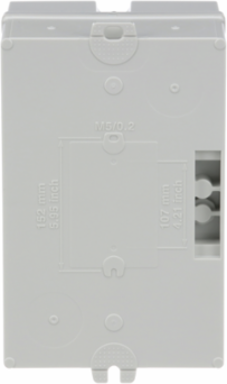

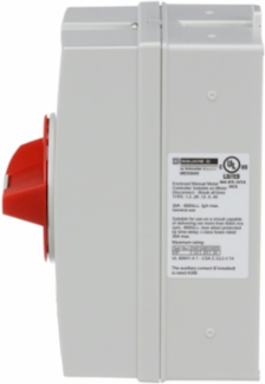

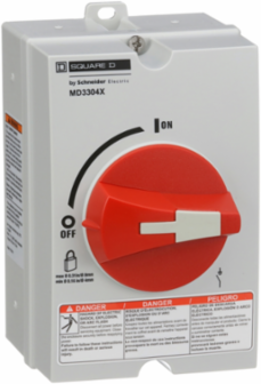

Schneider Electric MD3304X Motor Disconnect Switch 30A NEMA 4X 7.5 HP 6.38 Inch Tall
- MPN: MD3304X
- PPN: SCH-MD3304X
CAD
$127.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This three pole 30 A motor disconnect switch has a 7.5 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 6000VAC. The red handle interlock prevents the removal of the cover when the switch is in the ON position. This MD motor disconnect switch has an extremely small footprint. It is 6.38 inches tall, 3.9 inches wide and 4.37 deep. Switch is UL listed and CSA certified.
Features
- The MD3304X is a 3-pole, 30-Amp non-fused motor disconnect switch from the Square D Pacesetter line. It is designed to provide a local, visible means of disconnecting power to a motor, satisfying NEC® and CEC requirements that a "disconnecting means" be located within sight of the motor and the driven machinery.
- This switch is housed in a NEMA 4X non-metallic (polycarbonate) enclosure. It is specifically engineered to be watertight, dust-tight, and highly resistant to corrosion. This makes it the ideal choice for food and beverage processing plants, dairies, and marine environments where high-pressure hosedowns and harsh cleaning chemicals are common.
- While rated for 30 Amps of continuous current, its horsepower (HP) ratings vary by voltage: 2 HP at 120V AC , 5 HP at 240V AC , 10 HP at 480V AC , 15 HP at 600V AC. It is a non-fused device, meaning it provides a physical disconnect but relies on upstream breakers or fuses for overcurrent protection.
- For maximum operator safety, the high-visibility red handle can be padlocked in the "OFF" position, allowing for secure Lockout/Tagout (LOTO) during maintenance. The handle is interlocked with the cover, preventing the enclosure from being opened while the switch is in the "ON" position, which protects personnel from accidental contact with live parts.
- The MD3304X features a compact footprint and includes internal grounding terminals. The non-metallic enclosure is easy to drill for conduit entry, and because it is double-insulated, it does not require the enclosure itself to be grounded. It is UL Listed and CSA Certified, ensuring it meets the rigorous safety standards for industrial motor control across North America.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 30 A
- Width
- 3.90 in
- Height
- 6.38 in
- Enclosure Rating
- NEMA 4X
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- Rohs Exemption Information
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration
- Environmental Disclosure
- ENVPEP1304031
- Range Of Product
- MD
- Product Or Component Type
- Motor Disconnect Switch
Horsepower Rating7.5 hp 220/240 V AC, 20 hp 440/480 V AC, 25 hp 600 V AC
Depth4.37 in
Net Weight.68 kg
Product CertificationsUL Listed, CSA Certified
Mercury FreeYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Sustainable Offer StatusGreen Premium product
Circularity ProfileN/A
Warranty18 months
