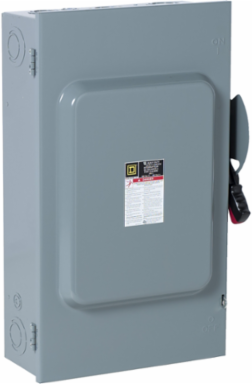

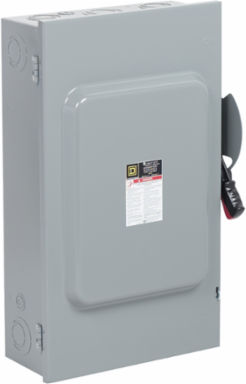

Square D CHU364 Safety switch, heavy duty, non fusible, 200A, 600VAC/VDC, 3 poles, 150HP, NEMA 1
- MPN: CHU364
- UPC: 785901994640
- PPN: SCH-CHU364
CAD
$841.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This device is rated at 200 amps, three poles, 150 horse power, with a voltage of 600 VAC and 600 VDC. This device is Type 1 rated with a steel enclosure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States, ZZ
Depth8.25 in
Complementary Attributes
- Maximum Horse Power Rating
- 50 hp at 480 V AC 50/60 Hz for 1 phase motors, 150 hp at 600 V AC 50/60 Hz for 3 phase motors125 hp at 480 V AC 50/60 Hz for 3 phase motors60 hp at 240 V AC 50/60 Hz for 3 phase motors50 hp at 600 V AC 50/60 Hz for 1 phase motors, 15 hp at 240 V AC 50/60 Hz for 1 phase motors, 50 hp at 600 V DC40 hp at 250 V DC
Line Rated Current200 A
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 5.7708600096121065, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.8402933995235071, 0.8 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 58 kg CO2 eq., 58.18838986968248
- Local Publishable Date
- 2026-05-08
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Awg Gauge
- AWG 6...250 kcmil copper or aluminium
- Disconnector Device Type
- non-fusible disconnect
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Software Version
- v5.9.4
- Tightening Torque
- 275-275 lbf.in 13.30-127 mm² (AWG 6...250 kcmil)
- Pep Code
- ENVPEP2305005EN
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 29 in
- Certificate Agency
- cUL
- Nbr. Of Units In Pkg.
- 1
- Warranty (In Months)
- 18
Carbon Footprint Of The End-of-life Phase [C1 To C4]43 kg CO2 eq., 42.88276182246197
Carbon Footprint Of The Manufacturing Phase [A1 To A3]89 kg CO2 eq., 89.21513206780823
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1906
China Rohs In ScopeNo
With Recycled CardboardYes
Product Kit IdentifierN
Device Compositionnone
Electrical Connectionlugs
Number Of Poles3
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Sustainable PackagingYes
Total Lifecycle Carbon Footprint197 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 200A.This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1
Functional-unit UnitEACH
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %85
Width Nominal18.5 in
[Ue] Rated Operational Voltage600 V AC/DC
Package Weight(Lbs)19.051 kg
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2305005EN
- Nema Degree Of Protection
- NEMA 1 steel
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2305005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint196.89743716908828
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
