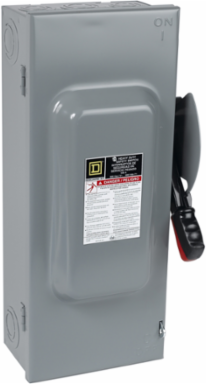

Square D CHU363 Safety switch, heavy duty, non fusible, 100A, 600VAC/VDC, 3 poles, 100HP, NEMA 1
- MPN: CHU363
- UPC: 785901385424
- PPN: SCH-CHU363
CAD
$509.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This device is rated at 100 amps, three poles, 100 horse power, with a voltage of 600 VAC and 600 VDC. This device is Type 1 rated with a steel enclosure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States, ZZ
Depth6.38 in
Complementary Attributes
- Maximum Horse Power Rating
- 40 hp at 480 V AC 50/60 Hz for 1 phase motors, 100 hp at 600 V AC 50/60 Hz for 3 phase motors75 hp at 480 V AC 50/60 Hz for 3 phase motors, 60 hp at 480 V AC 50/60 Hz for 3 phase motors40 hp at 240 V AC 50/60 Hz for 3 phase motors, 40 hp at 600 V AC 50/60 Hz for 1 phase motors, 20 hp at 240 V AC 50/60 Hz for 1 phase motors7.5 hp at 120 V AC 50/60 Hz for 1 phase motors50 hp at 600 V DC, 20 hp at 250 V DC, 7.5 hp at 125 V DC
Line Rated Current100 A
Important Information Attributes
- Tightening Torque
- 50-50 lbf.in (AWG 3...AWG 1/0)45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 17 kg CO2 eq., 17.414914771967418
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 41 kg CO2 eq., 41.300110595532956
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Awg Gauge
- AWG 12...AWG 1/0 aluminiumAWG 14...AWG 1/0 copper
- Disconnector Device Type
- non-fusible disconnect
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 92 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 89
- Width Nominal
- 10.25 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Package Weight(Lbs)
- 7.571 kg
Carbon Footprint Of The Distribution Phase [A4]2.252563447469058, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.7919857012011361, 0.8 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]30 kg CO2 eq., 30.347997770169158
Local Publishable Date2026-05-08
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Kit IdentifierN
Device Compositionnone
Electrical Connectionlugs
Number Of Poles3
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Sustainable PackagingYes
Pep CodeENVPEP2305006EN
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal21.25 in
Certificate AgencyCSA
Nbr. Of Units In Pkg.1
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Nema Degree Of Protection
- NEMA 1 steel
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Carbon Footprint92.10757228633973
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2305006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
