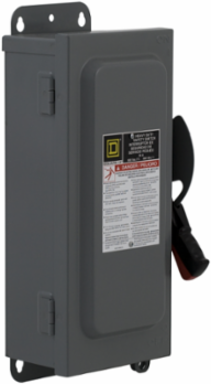

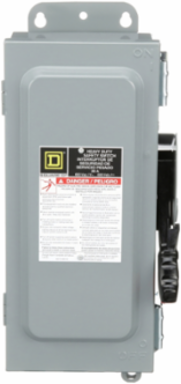

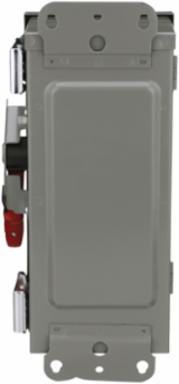

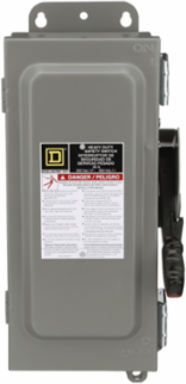

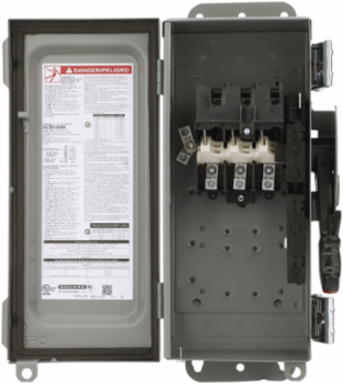

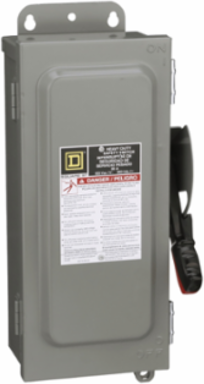

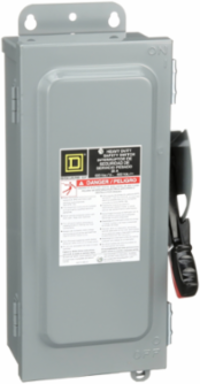

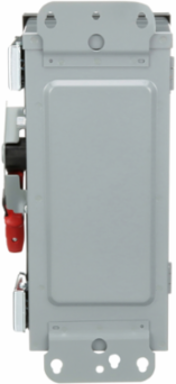

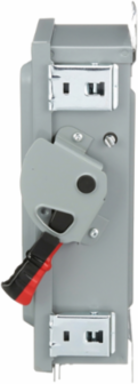

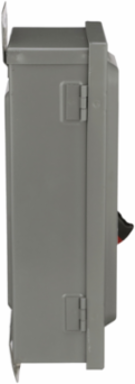

Square D HU361AWK Safety switch, heavy duty, non fusible, 30A, 3 wire, 3 pole, 30HP, 600V AC/DC, NEMA 12
- MPN: HU361AWK
- UPC: 785901505716
- PPN: SCH-HU361AWK
CAD
$539.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 3R/12 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth4.96 in
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Motor Power Hp
- 5 hp at 240 V AC 50-60 Hz for 1 phase motors10 hp at 240 V AC 50-60 Hz for 3 phase motors7.5 hp at 480 V AC 50-60 Hz for 1 phase motors, 20 hp at 480 V AC 50-60 Hz for 3 phase motors, 10 hp at 600 V AC 50-60 Hz for 1 phase motors, 30 hp at 600 V AC 50-60 Hz for 3 phase motors5 hp at 250 V DC, 15 hp at 600 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 1.3427313219426575, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.4720950296553596, 0.5 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 3.2480830971283483
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Kit Identifier
- N
- Device Application
- heavy application
- Disconnector Device Type
- non-fusible disconnect
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 40 kg CO2 eq.
- Wiring Configuration
- 3-wire
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 89
- Width Nominal
- 7.55 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Package Weight(Lbs)
- 4.513 kg
- Customs Code
- 8536509045
Tightening Torque45-45 lbf.in 13.3-13.3 mm² (AWG 6), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Carbon Footprint Of The End-of-life Phase [C1 To C4]10 kg CO2 eq., 10.380862549978731
Carbon Footprint Of The Manufacturing Phase [A1 To A3]25 kg CO2 eq., 24.618597162546592
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeNo
Without Single Use PlasticYes
Awg GaugeAWG 12...AWG 6 aluminiumAWG 14...AWG 6 copper
Device Compositionnone
Electrical Connectionlugs
Number Of Poles3
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2305006EN
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal14.6 in
Certificate AgencyUL listed file E2875
Nbr. Of Units In Pkg.1
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Nema Degree Of Protection
- NEMA 3R/12 galvannealed steel
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Carbon Footprint40.06236916125169
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2305006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
