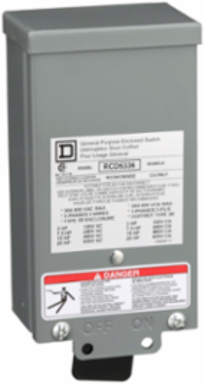

Square D RCD5336 Heavy Duty Non-Fusible Safety Switch 30A 600V 3 Poles 20hp NEMA 3R
- MPN: RCD5336
- UPC: 785901595335
- PPN: SCH-RCD5336
CAD
$166.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This heavy-duty non-fusible safety switch from Schneider Electric is engineered for reliable performance in demanding environments. Rated at 30A and capable of withstanding up to 600V, it is an essential component for ensuring safe disconnects in automation and control applications. With its robust NEMA 3R enclosure, this switch provides reliable protection against dust and water, making it ideal for both indoor and outdoor installations. Additionally, with a 20hp rating, it efficiently accommodates significant loads, ensuring operational safety and efficiency in your electrical systems.
Features
- Engineered with a robust NEMA 3R-rated stainless steel housing, this heavy-duty disconnect switch is designed to continuously shed rain, sleet, and environmental dust. This rugged, weatherproof protection makes it the ideal, code-compliant outdoor safety switch for commercial HVAC roof units and exposed industrial installations, actively preventing moisture-induced shorts and maximizing the lifespan of your electrical distribution equipment.
- Capable of safely managing up to 600 VAC/VDC and motor loads up to 20 horsepower, this 3-pole non-fusible disconnect provides reliable local power isolation. It easily accommodates significant electrical draws from commercial air compressors and heavy manufacturing machinery, allowing facility electricians to rapidly and safely cut line power for immediate local equipment servicing.
- Designed with a strict mechanical interlock system, the enclosure door is physically blocked from opening while the switch is energized, and the quick-make/quick-break switch cannot be thrown into the "ON" position while the door remains open. Paired with a highly visible red-and-black indicator handle, this fail-safe mechanism guarantees strict OSHA lockout/tagout (LOTO) compliance and protects your workers from accidental live-wire contact
- Featuring spacious, front-facing lugs that reliably accept a wide range of wire sizes (AWG 14 to 6 copper or AWG 12 to 6 aluminum), this compact safety switch significantly streamlines the field termination process. The contractor-friendly flush backwall design and integrated knockouts eliminate frustrating wire bending in tight spaces, saving your crew valuable labor time during fast-paced retrofits or new installations.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 83 mm |
|---|
Complementary Attributes
| Line Rated Current | 30 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Application | air compressor, heating ventilation and air conditioning |
| Carbon Footprint Of The Distribution Phase [A4] | 0.5176938843740803, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.18201758289393435, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 3 kg CO2 eq., 3.2480830971283483 |
| Local Publishable Date | 2026-07-03 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...6 AWG aluminium14 AWG...6 AWG copper |
| Electrical Connection | lugs |
| Motor Power Hp | 20 hp at 600 V AC 50/60 Hz for 3 phase motors15 hp at 480 V AC 50/60 Hz for 3 phase motors7.5 hp at 240 V AC 50/60 Hz for 3 phase motors3 hp at 120 V AC 50/60 Hz for 3 phase motors |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Tightening Torque | 25-25 lbf.in 16-32 mm² |
| Pep Code | ENVPEP2305006EN |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 222 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Package Weight(Lbs) | 1.74 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CSA, UL |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 4 kg CO2 eq., 4.002371113884997 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 9.491770233288515 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 17 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 89 |
| Width Nominal | 114 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509065 |
