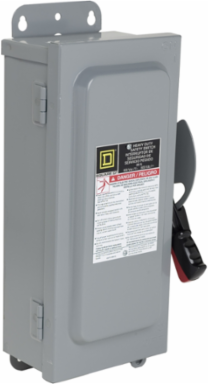

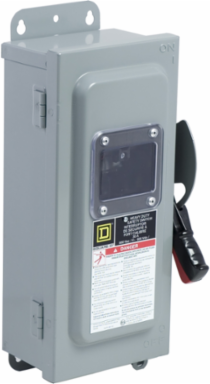

Square D CHU361AWK Safety switch, heavy duty, non fusible, 30A, 600VAC/VDC, 3 poles, 30HP, NEMA 12
- MPN: CHU361AWK
- UPC: 785901994527
- PPN: SCH-CHU361AWK
CAD
$541.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This device is rated at 30 amps, three poles, 30 horse power, with a voltage of 600 VAC and 600 VDC. This device is Type 12 rated providing moderate indoor protection against dust and liquid ingress.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth4.96 in
Complementary Attributes
- Maximum Horse Power Rating
- 30 hp at 600 V AC 50/60 Hz for 3 phase motors, 20 hp at 480 V AC 50/60 Hz for 3 phase motors, 10 hp at 240 V AC 50/60 Hz for 3 phase motors, 10 hp at 600 V AC 50/60 Hz for 1 phase motors, 7.5 hp at 480 V AC 50/60 Hz for 1 phase motors, 5 hp at 240 V AC 50/60 Hz for 1 phase motors, 2 hp at 120 V AC 50/60 Hz for 1 phase motors, 15 hp at 600 V DC, 5 hp at 250 V DC, 3 hp at 125 V DC
- Ue Rated Operational Voltage
- 600 V AC/DC
Line Rated Current30 A
Important Information Attributes
- Awg Gauge
- AWG 12...AWG 6 aluminium, AWG 14...AWG 6 copper
- Carbon Footprint Of The Distribution Phase A4
- 1.3602853099760315, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.4782668902247516, 0.5 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 3 kg CO2 eq., 3.2480830971283483
- Local Publishable Date
- 2026-05-08
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Kit Identifier
- N
- Disconnector Device Type
- non-fusible disconnect
- Number Of Poles
- 3
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2305006EN
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 14.6 in
- Certificate Agency
- CSA
Tightening Torque45-45 lbf.in 13.3-13.3 mm² (AWG 6), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Carbon Footprint Of The End Of Life Phase C1 To C411 kg CO2 eq., 10.516575133725405
Carbon Footprint Of The Manufacturing Phase A1 To A325 kg CO2 eq., 24.940444544020167
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeNo
Without Single Use PlasticYes
Device Compositionnone
Electrical Connectionlugs
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint41 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential, In %89
Width Nominal7.55 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Carbon Footprint
- 40.5436549750747
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2305006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Mercury FreeYes
Environmental DisclosureENVPEP2305006EN
Nema Degree Of ProtectionNEMA 12 galvannealed steel
Packaging Without Single Use PlasticYes
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
ETIM
- ETIM 8
- EC001040
ETIM 9EC001040
