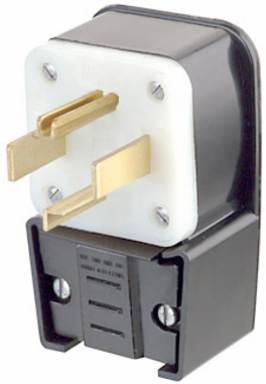

Leviton 9432-P 30 Amp Straight Blade Plug, NEMA 14-30P, 125/250 Volt, Grounding, Angled, Black
- MPN: 9432-P
- UPC: 078477809952
- PPN: LEV-9432-P
CAD
$130.27
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

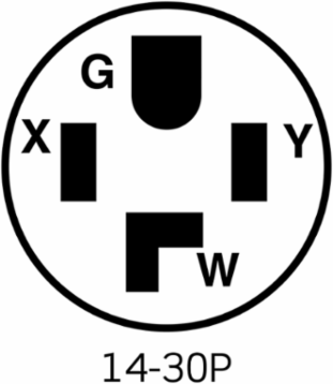

30 Amp, 125/250 Volt, NEMA 14-30P, 3P, 4W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black
Features
- Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
Material Specifications
| Assembly Screws | Steel, Zinc Plated |
|---|---|
| Body Material | Super Tough Nylon |
| Blades/Contacts | Solid Brass |
|---|---|
| Color | Black |
Mechanical Specifications
| At Rated Voltage | 2 HP |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire Gauge | 10-4 AWG |
| Cord Range | .625 - 1.375 |
|---|---|
| Terminal Accom. | Up to 4 AWG |
| Torque Range | 16-20 in-lbs |
Product Features
| Device Type | Power Device |
|---|---|
| Warranty | 2-Year Limited |
| Feature | Angled |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 30 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 3 |
| Voltage | 125/250 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Wire | 4 |
