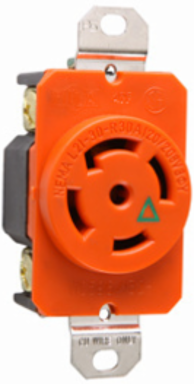

Pass & Seymour IGL2130R 30A Isolated Ground Single Receptacle, Orange, 120/208V, 5-Wire, Compact Size
- MPN: IGL2130R
- UPC: 785007213065
- PPN: P-S-IGL2130R
CAD
$153.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
30A Isolated Ground Single Receptacle, Orange, 120/208V, 5-Wire, Compact Size
Features
- UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
- 140 joules of energy absorption in each of thethree modes.
- 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
- 1 filtering capacitor for 7 to 1 average noise reduction.
- Nominal let-through (suppressed) voltage inall 3 modes, 500V.
- LED indicator light.
- Response time less than 1 nanosecond for unmounted MOV.
- Overcurrent protection in all 3 modes.
- Electronic components potted for electrical, mechanical and thermal stability.
- Thermal protection in all 3 modes.
- Leakage current: 0.5 mA at 25: C/120VAC.
- 3 18mm super MOVs to suppress transients in all modes : equally.
- Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
- Varistor voltage: 150V RMS.
- Back and side wire capability including ground terminal.
- Operating temperature: -40: C to 85: C(-40: F to 185: F)
- Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.28 in
- Height
- 2.42 in
- Width
- 1.61 in
- Phase
- Three
- Standard
- UL 498
- Voltage
- 120/208 V
- Outlet Type
- Locking
- Number of Poles
- 4-Way
- Wall Plate Included
- No
- Number of Receptacles
- 1.0
- Application Sector
- Industrial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
ColorOrange
Product LinePass & Seymour
Country of OriginMexico
Amperage30.0 A
StandardFEDSPEC
Number of Wires5.0
Indoor/OutdoorIndoor
Wire Size14 - 10 AWG
FeaturesIndicator Lights
Application SectorCommercial
NEMA Configuration CodeL21-30R
Wire Connection TypeScrew Terminals
Special FeaturesIsolated ground, locking device, impact/corrosion resistant\
