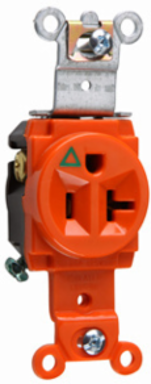

Pass & Seymour IG5361 Isolated Ground Heavy Duty Receptacle, 20A 125V, Orange, 1.38 Inch Width
- MPN: IG5361
- UPC: 785007653618
- PPN: P-S-IG5361
CAD
$76.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Isolated Ground Heavy Duty Receptacle, 20A 125V, Orange, 1.38 Inch Width
Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation.
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
- High-impact resistant nylon face resists impacts and scrapes.
- Corrosion-resistant plated steel strap.
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
- Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Specifications
Key Specifications
| Depth | 1.093 in |
|---|---|
| Special Features | IG symbol and Isolated Ground markings for easy identification and circuit delineation. Triple-wipe brass contacts ensure lasting, positive contact with plug blades. High-impact resistant nylon face resists impacts and scrapes. Corrosion-resistant plated steel strap. Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire. Auto-ground clip assures positive ground. |
| Width | 1.38 in |
| Country of Origin | Mexico |
| Amperage | 20.0 A |
| Standard | FEDSPEC |
| Number of Gangs | 1 |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Standard | CSA C22.2 No. 42 |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Min | -40.0 °C |
| Dielectric Strength | Withstands 2000V minimum |
| Environmental Conditions | Flammability: UL94 V2 |
| Height | 1.68 in |
|---|---|
| Color | Orange |
| Product Line | Pass & Seymour |
| Standard | UL498 |
| Voltage | 125.0 V |
| Mounting Type | Box |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Number of Receptacles | 1.0 |
| Outlet Type | Straight Blade |
| Outlet Type | Isolated Ground |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Screw Terminals |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature | -40°-60°C |
| Wire Connection Type | Internal Pressure Plates |
| Features | Single Piece Plated Steel Mounting Strap |
