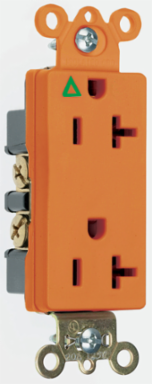

Pass & Seymour IG26362 20A 125V Isolated Ground Orange Decorator Duplex Receptacle, 2.635 Inch Height
- MPN: IG26362
- UPC: 785007781700
- PPN: P-S-IG26362
CAD
$58.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Isolated Ground Orange Decorator Duplex Receptacle, 2.635 Inch Height
Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation.
- Face color coding by voltage facilitates locating and mating of proper devices.
- High-impact resistant nylon face resists impacts and scrapes.
- Corrosion-resistant plated steel strap.
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.833 in
- Standard
- UL498
- Amperage
- 20.0 A
- Country of Origin
- Mexico
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Finish
- Matte
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
Height2.635 in
Width1.322 in
Voltage125.0 V
StandardFEDSPEC
Indoor/OutdoorIndoor
ColorOrange
Product LinePass & Seymour
FeaturesDecorator Style
StandardCSA C22.2 No. 42
Outlet TypeIsolated Ground
NEMA Configuration Code5-20R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
FeaturesSingle Piece Plated Steel Mounting Strap
