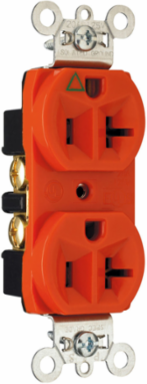

Pass & Seymour IG5362 Isolated Ground Duplex Receptacle 20A 125V Matte Orange, 2.635 Inch Height
- MPN: IG5362
- UPC: 785007045345
- PPN: P-S-IG5362
CAD
$30.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Isolated Ground Duplex Receptacle 20A 125V Matte Orange, 2.635 Inch Height
Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation.
- Face color coding by voltage facilitates locating and mating of proper devices.
- High-impact resistant nylon face resists impacts and scrapes.
- Corrosion-resistant plated steel strap.
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
| Depth | 0.922 in |
|---|---|
| Height | 2.635 in |
| Width | 1.322 in |
| Voltage | 125.0 V |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Outlet Type | Straight Blade |
| Outlet Type | Isolated Ground |
| NEMA Configuration Code | 5-20R |
| Wire Connection Type | Screw Terminals |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature | -40°-60°C |
| Features | Single Piece Plated Steel Mounting Strap |
| Finish | Matte |
| Amperage | 20.0 A |
|---|---|
| Standard | UL 498 |
| Country of Origin | Mexico |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Min | -40.0 °C |
| Wire Connection Type | Internal Pressure Plates |
| Color | Orange |
| Product Line | Pass & Seymour |
