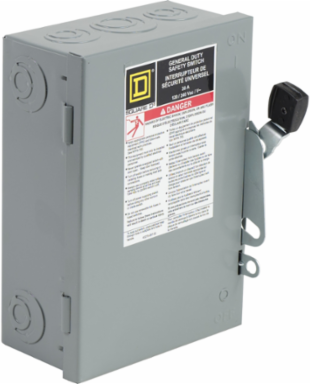

Square D CD211NCP Safety switch, general duty, fusible, 2 pole, 3 wire, 120/240VAC, 30A, Type 1 galv steel, with solid neut
- MPN: CD211NCP
- UPC: 047569127687
- PPN: SCH-CD211NCP
CAD
$73.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 120/240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed bonded neutral. The device accepts plug fuse types. The enclosure is surface mounted and is a Type 1 galvannealed steel. This switch complies with CSA C22.2.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6129019550635663, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2154920808974165, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 kg CO2 eq., 2.1653887314188993
- Local Publishable Date
- 2026-07-08
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Energy Efficiency Optimized
- False
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2305006_V1
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Carbon Footprint Of The End-of-life Phase [C1 To C4]5 kg CO2 eq., 4.738439364714421
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 11.237383149755367
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category4
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Software Versionv5.9.4
Total Lifecycle Carbon Footprint19 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %89
Package Weight(Lbs)2.06 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 18.96960528184967
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2305006_V1
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2305006_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
