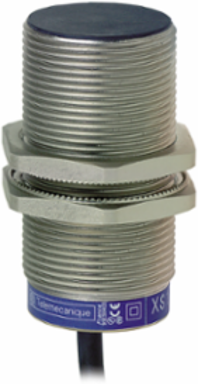

Telemecanique Sensors XS630B1MAL10 Inductive proximity sensors XS, inductive sensor XS6 M30, L62mm, brass, Sn15mm, 24...240VAC/DC, cable 10 m
Telemecanique Sensors XS630B1MAL10 Inductive proximity sensors XS, inductive sensor XS6 M30, L62mm, brass, Sn15mm, 24...240VAC/DC, cable 10 m
- MPN: XS630B1MAL10
- PPN: TES-XS630B1MAL10
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$244.10/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, long case, flush mountable sensor. Diameter 30mm, threaded M30 x 1.5. It features a nickel plated brass case and a 10m long PvR cable. It has a sensing distance of 15mm. Two-wire, AC or DC supply, 24V to 240V, NO function.
Specifications
Environment
- Product Certifications
- UL || CSA
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Maximum Delay Response
- 0.5 ms
- Operating Zone
- 0-12 mm
- Threaded Length
- 52 mm
- Length
- 62 mm
- Maximum Residual Current
- 0.8 mA open state
- Thread Type
- M30 x 1.5
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 25 ms
- Wire Insulation Material
- PVC
- Enclosure Material
- nickel plated brass
- Front Material
- PPS
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<5.5 V closed)
MarkingCE
Net Weight0.525 kg
Switching Frequency<= 25 Hz AC || <= 500 Hz DC
Sensing Range> 8...15 mm
Maximum Delay Recovery2 ms
Supply Voltage Limits20-264 V AC/DC
Detection Facefrontal
Cable Composition2 x 0.34 mm²
Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XS6
- Size
- 62 mm
- Ip Degree Of Protection
- IP68 double insulation IEC 60529 || IP69K DIN 40050
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- 5...200 mA DC || 5...300 mA AC
- Output Circuit Type
- AC/DC
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz
Type Of Output Signaldiscrete
Cable Length10 m
Materialmetal
Wiring Technique2-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance15 mm
Detector Flush Mounting Acceptanceflush mountable
Sensor Designcylindrical M30
