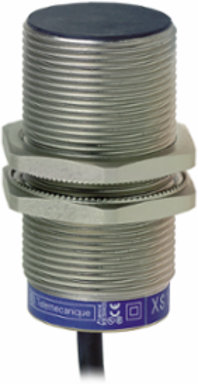

Telemecanique Sensors XS530B1PAL2 Inductive proximity sensors XS, inductive sensor XS5 M30, L43mm, brass, Sn10mm, 12...24 VDC, cable 2 m
Telemecanique Sensors XS530B1PAL2 Inductive proximity sensors XS, inductive sensor XS5 M30, L43mm, brass, Sn10mm, 12...24 VDC, cable 2 m
- MPN: XS530B1PAL2
- PPN: TES-XS530B1PAL2
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$139.78/ EA
Description
This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CCC, CSA, UL certified.
Specifications
Environment
- Product Certifications
- CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- <= 10 mA no-load
- Status Led
- output state 1 LED yellow)
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Net Weight
- 0.205 kg
- Thread Type
- M30 x 1.5
- Maximum Delay Recovery
- 0.7 ms
- Supply Voltage Limits
- 10-36 V DC
- Detection Face
- frontal
- Cable Composition
- 3 x 0.34 mm²
Maximum Delay Response0.3 ms
Operating Zone0-8 mm
Threaded Length32 mm
Length43 mm
Switching Frequency<= 1000 Hz
Differential Travel1...15% of Sr
Maximum Delay First Up10 ms
Wire Insulation MaterialPVC
Enclosure Materialnickel plated brass
Front MaterialPPS
Specifications
- Electrical Connection
- cable
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Cable Length
- 2 m
- Material
- metal
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 10 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- cylindrical M30
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Sensor NameXS5
Size43 mm
Ip Degree Of ProtectionIP68 double insulation IEC 60529 || IP69K DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 200 mA DC overload and short-circuit protection
Output Circuit TypeDC
