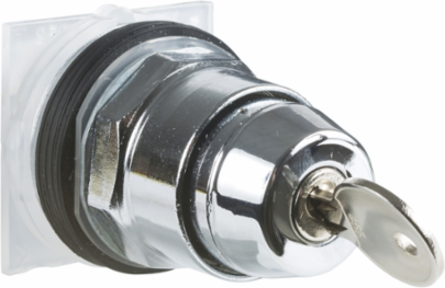

Schneider Electric 9001KS11K1R Key Selector Switch Head, 30mm, Metal, Key 455, 2 Positions, IP66

MPN: 9001KS11K1R
UPC: 785901831273
PPN: SCH-9001KS11K1R
UNSPSC: 39122217

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$178.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001K, black key operated selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel. This key operated selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Mexico, United States

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	NEMA, UL 508
Local Publishable Date	2026-08-10
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	metal
Compatibility Code	9001KS
Device Short Name	9001K
Key Withdrawal Position	left
Mounting Diameter	30 mm
Operator Profile	key switch
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	No
Shock Resistance	50 gn IEC 60068-2-27
Type Of Keylock	key
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cam Profile	5
Contacts Type And Composition	without contact block
Key Number	455
Mechanical Durability	0.5 Mcycles
Operator Position Information	2 positions
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	head for key selector switch
Range Of Product	Harmony 9001K
Shape Of Signaling Unit Head	octagonal
Sustainable Packaging	Yes
Type Of Operator	stay put
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Customs Code	8538908180

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP65/IP66
Product Compatibility	9001KA1 side 1 or 2, 9001KA2 side 1 or 2
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
