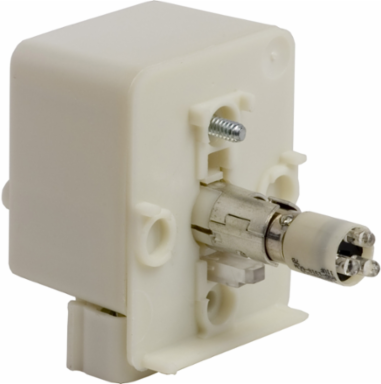

Square D 9001KM38LW 30mm Push Button, Types K, SK or KX, light module, white LED lamp, 120 VAC/VDC
Square D 9001KM38LW 30mm Push Button, Types K, SK or KX, light module, white LED lamp, 120 VAC/VDC
- MPN: 9001KM38LW
- UPC: 785901696490
- PPN: SCH-9001KM38LW
- UNSPSC: 39121534
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$147.22/ EA
Description
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 120 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a white LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear lens cap. These light modules are UL Listed and CSA certified.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA, NEMA
StandardsUL 508, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C 4520, JIS C 852
Important Information Attributes
- Product Or Component Type
- light module, light block
- Us Rated Supply Voltage2
- 120 V AC 50...60 Hz, 120 V DC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.1594941734381087
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.4 kg CO2 eq., 0.3962036601455505
- Us Rated Supply Voltage5
- 120 V AC 50...60 Hz, 120 V DC
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Bulb Base
- BA 9s
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Light Source
- LED (bulb included)
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Stocking Flag
- N
- Pep Code
- ENVPEP2503027EN
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
Range Of ProductHarmony 9001K, Harmony 9001SK
Carbon Footprint Of The Distribution Phase A40.03927191429621943, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0005357807567982101, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Device Short Name9001K
Light Block Supplydirect via integral resistance 1.4 VA
Package Weight Lbs72.6 g
Protective TreatmentTC
Shock Resistance50 gn IEC 60068-2-27
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Medium Desc30mm Push Button, Types K, SK or KX, light module, white LED lamp, 120 VAC/VDC
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThis subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Energy Model Manufacturing A1 A3 2Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- Ambient Air Temperature For Storage
- -40-70 °C, -40-158 °F
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 0.5955055286366768
- Environmental Disclosure
- ENVPEP2503027EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-70 °C, -13-158 °F
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2503027EN
IP Degree Of ProtectionIP10 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light module, light block
Range Of ProductHarmony 9001K, Harmony 9001SK
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
