Thomas & Betts M465LR-P2330 35 KV CONNECTOR 600A IEC
- MPN: M465LR-P2330
- UPC: 075114184403
- PPN: T-B-M465LR-P2330
- UNSPSC: 39121421
CAD
$896.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

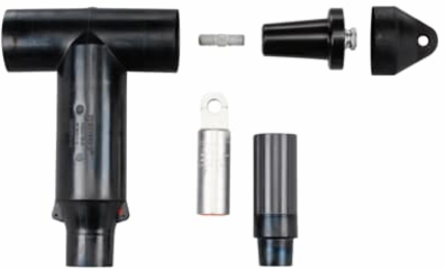

35kV, 630 Amp, Deadbreak Elbow, No Test Point, IEC-IEEE, No Sealing Kit. Cable Insulation Diameter 1.725 to 1.935 inch, Copper Lug, Wire Range 500 kcmil Stranded/Compressed or 600 kcmil Solid Compact or 250/300 mm2. 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions and Crimp Chart.
Features
- IEC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | 10.36 inch (264.1mm) x 13 inch (330.2mm) from Bottom to Center of Bushing |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Shielded, Fully Submersible |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 35kV, 630 Amp Connections |
| Standard | ANSI/IEEE Standard 386. IEC Standard |
| Conductor Range | 500 kcmil , 600 kcmil |
| Voltage Rating | 35 kV |
| Amperage Rating | 630 A |
| Temperature Rating | -40 to +65 C |
