Thomas & Betts 656CEPT-M5380 15 KV 600-200A COMBO T
- MPN: 656CEPT-M5380
- UPC: 075114197625
- PPN: T-B-656CEPT-M5380
- UNSPSC: 39121421
CAD
$2624.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

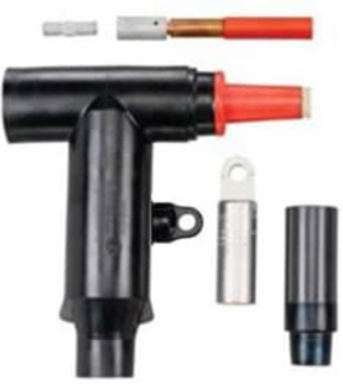

15kV, 600 Amp - 200 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter and lug kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
Features
- Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 15kV Connector |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 700 to 750 STR/COMPR kcmil , 900 SOL/COMPT kcmil |
| Voltage Rating | 15 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
