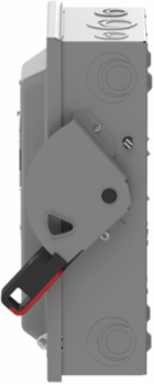

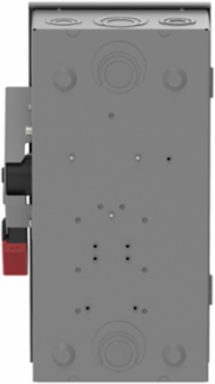

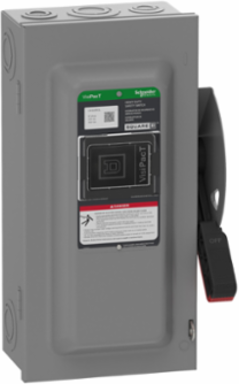

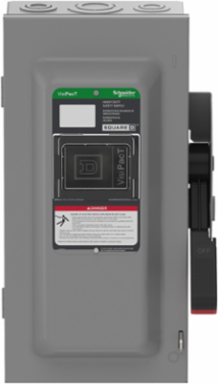

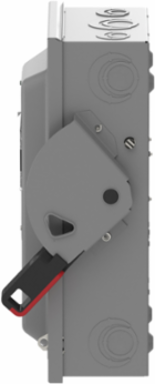

Square D VH322BGL Heavy Duty Safety Switch 60A 3-Pole NEMA 1 240V with Viewing Window
- MPN: VH322BGL
- PPN: SCH-VH322BGL
CAD
$360.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The VH322BGL Heavy Duty Safety Switch from Schneider Electric is engineered for exceptional performance and safety in various industrial applications. With a robust 60A capacity and a 3-pole configuration, this switch ensures reliable circuit protection while enhancing operational control. Designed with a practical viewing window, it allows for easy inspection of the switch's status, further promoting safety and efficiency on the job site. Ideal for automating and controlling electrical systems, this durable safety switch meets the stringent needs of today s demanding environments, making it a vital component for any efficient and secure electrical setup.
Features
- Housed in a rugged NEMA 1 cold-rolled steel enclosure, this 60A heavy-duty safety switch is engineered for superior durability in indoor commercial and industrial settings. The robust mechanical design ensures a long service life and reliable performance, protecting your critical power connections from physical impact and ensuring your facility remains operational under heavy usage.
- Featuring a high-visibility, plated copper blade assembly, this switch provides an unmistakable visual verification of the circuit status. This "visible blade" technology is a critical safety requirement for industrial electricians, offering peace of mind by eliminating any doubt about whether the line is live during lockout/tagout (LOTO) procedures and routine equipment maintenance.
- This "GL" suffix model comes factory-equipped with a dedicated grounding bar, simplifying the wiring process for 3-wire, 240V AC systems. By providing a secure, centralized point for equipment grounding, it reduces installation labor time and ensures your electrical system meets NEC and CEC bonding requirements for maximum personnel safety against ground faults.
- Rated for 60 Amps at 240V AC, this 3-pole safety switch is optimized for controlling high-torque motors, large HVAC units, and industrial processing equipment. It is designed to safely make and break power under full load, providing a reliable emergency disconnect point that prevents equipment damage and ensures your power distribution network remains stable and secure.
- Built with a sophisticated dual-cover interlock mechanism, the enclosure door cannot be opened when the switch is in the "ON" position, and the switch cannot be turned on while the door is open. This fail-safe safety feature prevents accidental contact with live internal components, significantly reducing the risk of arc flash and ensuring your facility adheres to the highest electrical safety standards.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

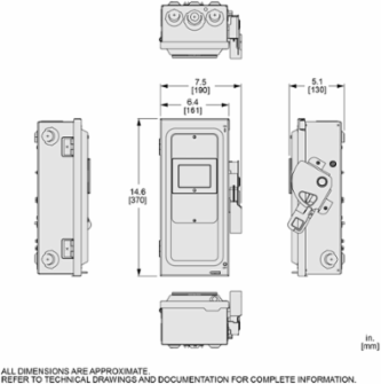

| Depth | 5.11 in |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 3 hp at 240 V AC 50-60 Hz for 1 phase motors7.5 hp at 240 V AC 50-60 Hz for 3 phase motors, 10 hp at 240 V AC 50-60 Hz for 1 phase motors, 15 hp at 240 V AC 50-60 Hz for 3 phase motors10 hp at 250 V DC |
| Short-circuit Current | 10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 9 kg CO2 eq., 9.213820047725156 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 23 kg CO2 eq., 23.4755747592267 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 47 kg CO2 eq. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 14.57 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 50-50 lbf.in (AWG 3)45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8)50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10) |
| Carbon Footprint Of The Distribution Phase [A4] | 1.1530080516702423, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.13590701769789323, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 13 kg CO2 eq., 12.99206512141278 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2345 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |

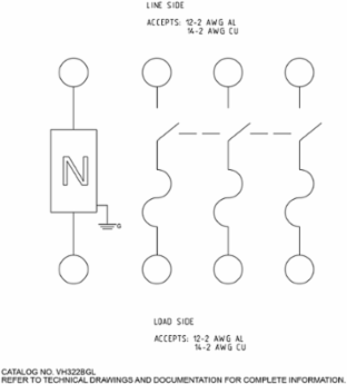

| Awg Gauge | AWG 14...AWG 3 copperAWG 12...AWG 3 aluminium |
| Device Composition | neutral (factory bonded) |
| Electrical Connection | lugs |
| Fuse Type | J |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Wiring Configuration | 4-wire (3PH + N) |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 6.36 in |
| [Ue] Rated Operational Voltage | 250 V DC240 V AC |
| Package Weight(Lbs) | 3.697 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Carbon Footprint | 46.97037499773277 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
