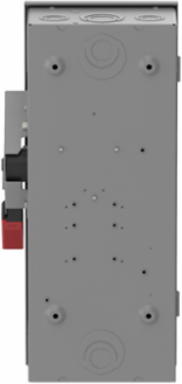

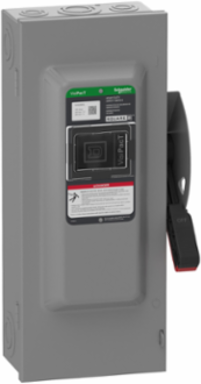

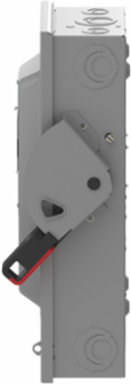

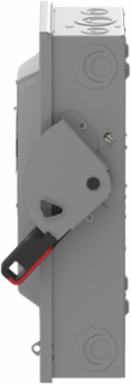

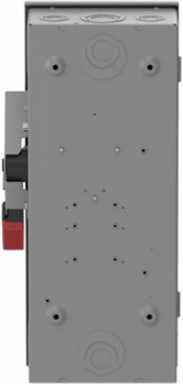

Square D VH323BGL Heavy Duty Safety Switch, 100A, 3 Pole, NEMA 1, 240V, Fused
- MPN: VH323BGL
- PPN: SCH-VH323BGL
CAD
$677.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This heavy-duty safety switch from Schneider Electric is designed to provide reliable power distribution and exceptional safety for your electrical systems. Operating at 100A with three poles, it ensures effective disconnection while maintaining a robust fused protection at 240V. Its NEMA 1 enclosure is well-suited for indoor applications, making it a versatile choice for various industrial settings where dependability and safety are paramount. With its engineered durability, this switch is an essential component for any installation requiring stringent safety measures and operational reliability.
Features
- This robust 3-pole (3P) switch handles a continuous operational current of up to 100 Amps. It is rated for system voltages up to 240 V AC or 250 V DC, delivering strong operational limits for standard 3-phase commercial and industrial settings, with a maximum motor power rating of 30 hp at 240 V AC.

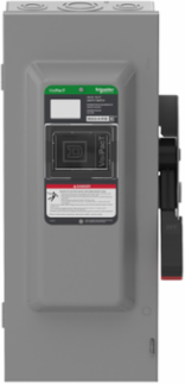

- The enclosure door features a factory-installed fused viewing window. This allows maintenance crews to safely perform visual inspections and confirm the physical separation of the switch blades with the door completely shut drastically reducing unnecessary exposure to dangerous arc-flash hazards on the facility floor.
- Built with a high-end quick-make, quick-break operating mechanism, the internal blade contacts snap open or closed at high velocity independent of handle speed, suppressing electrical arcing. It incorporates a dual-cover safety interlock system that physically blocks the enclosure door from opening while the switch is in the "ON" position, and blocks the handle from engaging if the front door is left unlatched.
- Custom-engineered as a high-reliability single-throw manual disconnect, this fusible safety switch isolates power loops under full load conditions. Belonging to the modern VisiPacT series, it functions as a main service entrance or branch-circuit protector, isolating downstream machinery while providing short-circuit defense via integrated industrial line fuses.
- Housed in a durable NEMA Type 1 indoor steel enclosure, this surface-mounted unit features a 4-wire configuration (3P + N) complete with a factory-installed solid neutral assembly that is pre-bonded to the frame. Shipped ready to accept high-capacity Class J fuses for an exceptional short-circuit current rating (SCCR) of up to 200 kA, it includes pre-installed equipment grounding lugs and complies with UL 98 and CSA C22.2 No. 4 standards for a quick, code-compliant field sign-off.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States

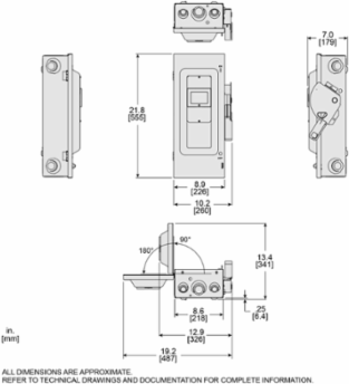

Depth7.04 in
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 15 hp at 240 V AC 50-60 Hz for 1 phase motors, 7.5 hp at 240 V AC 50-60 Hz for 1 phase motors15 hp at 240 V AC 50-60 Hz for 3 phase motors, 30 hp at 240 V AC 50-60 Hz for 3 phase motors, 20 hp at 250 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 2.594268116258045, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.30579078982025976, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 30 kg CO2 eq., 30.34737347722995
- Local Publishable Date
- 2026-06-23
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2345
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge

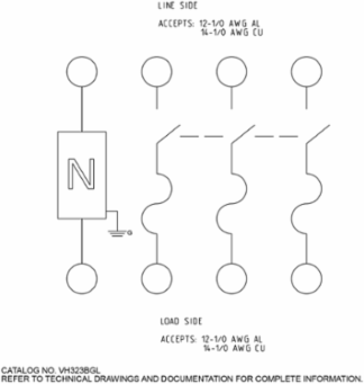

- 12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper
- Device Composition
- neutral (factory bonded)
- Electrical Connection
- lugs
- Fuse Type
- J
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Services
- factory installation
- Sustainable Packaging
- Yes
- Wiring Configuration
- 4-wire (3PH + N)
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 83
- Width Nominal
- 8.91 in
- [Ue] Rated Operational Voltage
- 250 V DC240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Tightening Torque50-50 lbf.in (1 AWG...3/0 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG)
Carbon Footprint Of The End-of-life Phase [C1 To C4]21 kg CO2 eq., 20.7310951073816
Carbon Footprint Of The Manufacturing Phase [A1 To A3]53 kg CO2 eq., 52.820043208260074
Local Data StatusPublishable
Pre Comm Date2023-04-05
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationheavy application
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Number Of Poles3
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Software Versionv5.9.4
Total Lifecycle Carbon Footprint107 kg CO2 eq.
Pep CodeENVPEP2303036EN
Pep Verification Date2023-10-24
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal21.84 in
Certificate AgencyUL listed file E2875
Short-circuit Current200 kA for J
Package Weight(Lbs)8.147 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2303036EN
- Nema Degree Of Protection
- NEMA 1 steel
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2023-10-24
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Carbon Footprint106.79857069894993
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2303036EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
