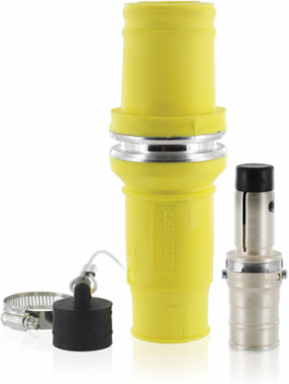

Leviton 49M53-Y 49 Series Male Plug, 535 MCM, Crimp Tube Termination
Leviton 49M53-Y 49 Series Male Plug, 535 MCM, Crimp Tube Termination
- MPN: 49M53-Y
- UPC: 078477280492
- PPN: LEV-49M53-Y
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$553.13/ EA
Description
Rhino-Hide 49 Series Single Pole Male Connector (Contact, Insulator, & Dust Cap), Industrial Grade, Crimped, 535 MCM Cable, 1000 Volt, 898 Amp Max - YELLOW
Features
- Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
- Color-coded connector insulator for quick visual identification of circuit and phase connections
- UV stable, high-performance TPV insulator resists cracking for greater service life
- Leviton plugs mate with other manufacturers' high-amperage single pole plugs and receptacles for fast, easy change out
Specifications
Standards and Certifications
- NEMA Rating
- Type 3R
ULRecognized Component
Material Specifications
- Cable Clamp
- Stainless Steel
- Connector Retention Ring
- Anodized Aluminum
- Male Contact
- Silver-Plated High Conductivity Alloy
Connector InsulatorSantoprene TPV
Dust CapSantoprene TPV
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Color
- Yellow
Electrical Specifications
- Max. Amperage
- 898
Max. Voltage1000 Volts AC/DC
