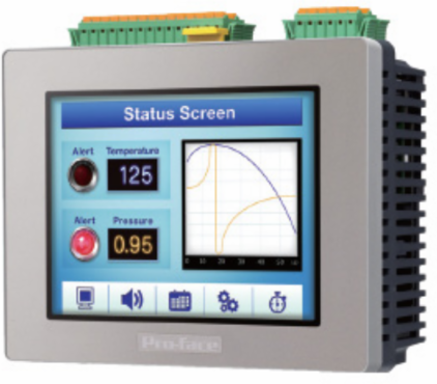

Pro-Face PFXLM4301TADDC LT-4301T 5.7" TFT HMI plus Control
- MPN: PFXLM4301TADDC
- PPN: SCH-PFXLM4301TADDC
CAD
$1934.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
5.7" TFT, 22mm, 1 Serial, Ethernet, 1 USB, DIO: 20 In 10 Out, Source, DC24V
Documentation & Downloads
Specifications
Additional
| Rated Voltage | 20.4Vdc to 28.8Vdc |
|---|---|
| Operating Temperature | 0 to 50 C (horizontal installation) |
| Relative Humidity | 5 to 85% non-condensing |
| Display Type | TFT Color LCD |
| Colors | 65536 colors |
| Touch Panel | Resistive Film Analog 1024 x 1024 pixels |
| Data Backup | 128KB nvSRAM |
| Built-in DIO Input | 20 points |
| Interfaces | 1 Serial (RS232C/RS485 RJ45), 1 Ethernet 10/100BASE-T, 1 USB 2.0 Type A, 1 USB 2.0 Mini-B |
| Structural Ratings | Front Module IP65f, NEMA Type 4x, Rear Module IP20 |
| Compliance | CE, UL Listed, RoHS, GOST, DNV-GL, ATEX, IECEx |
| Power Consumption | 10W |
|---|---|
| Storage Temperature | -20 to 60 C |
| Display Size | 5.7 in |
| Resolution | 320 x 240 pixels (QVGA) |
| Backlight | White LED adjustable on/off |
| Memory Application | 16MB FLASH EPROM |
| Logic Program Area | 132KB FLASH EPROM (expandable to 60,000 steps) |
| Built-in DIO Output | 10 points |
| Mounting Hole Size | 22 mm |
| Weight | 784 g (Modular Type Analog) |
