Schneider Electric HMISTU855 Harmony Touchscreen HMI, 5.7 Inch QVGA, 24V DC, NEMA 4X

  • MPN: HMISTU855
  • PPN: SCH-HMISTU855
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1146.71

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

    Features

    • Featuring an innovative modular design, this terminal mounts directly into a standard 22mm circular borehole the same size used for typical industrial pilot lights and buttons. This unique "push-button" mounting style eliminates the need for precision panel sawing, drastically reducing installation labor costs and allowing machine builders to easily integrate high-end touch controls into compact enclosures.
    • The high-contrast 320 x 240 pixel display supports up to 65,536 colors, providing sharp, synoptic views of your industrial processes and real-time alerts. This vibrant interface ensures critical system status and diagnostic information are visible even in low-light factory environments, helping operators make faster, more accurate decisions to maintain peak production efficiency.
    • Outfitted with integrated Ethernet TCP/IP, RJ45 Serial (RS-232C/485), and dual USB ports, the HMISTU855 supports a wide range of protocols including Modbus, Modbus TCP/IP, and Uni-TE. This flexible communication architecture allows for seamless data exchange with Schneider Electric PLCs or third-party controllers, simplifying the integration of your compact machines into larger industrial Internet of Things (IIoT) infrastructures.
    • The front panel is engineered to meet NEMA 4X and IP65 standards, making it fully dust-tight and resistant to high-pressure water jets and corrosion. Designed specifically for the food and beverage, pharmaceutical, and wastewater industries, this ruggedized construction protects internal electronics from harsh chemical splashes and airborne contaminants, ensuring a long service life in demanding industrial settings.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, China, Costa Rica, France, United Kingdom, Indonesia, United States
    Depth56.5 mm

    Physical Attributes

    Display Size5.7 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type1 USB 2.0 type mini B, 1 USB 2.0 type ACOM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s)power supply - removable screw terminal block1 Ethernet - RJ45

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Character FontTaiwanese (traditional Chinese), Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII, Korean
    Markingwith Schneider logo, CE
    Certificate AgencyUL class 1 Div2 T4A ou T5, C-tick, cULus, Marine, UKCA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.19996, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]94 kg CO2 eq., 93.873
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint93.873
    Use Carbon Footprint707.41
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2101003EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1920
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Brightness16 levels
    Display TypeQVGA TFT colour touchscreen
    Fixing ModeØ 22 mm hole
    Inrush Current30 A
    Number Of Pageslimited by internal memory capacity
    Power Consumption In W6.8 W
    Processor NameCPU ARM9
    Product Or Component Typetouch panel screen
    Realtime Clockaccess to the PLC real-time clock
    ReturnabilityYes
    Software DesignationVijeo Designer
    Supplyexternal source
    Sustainable PackagingNo
    Touch Panelanalogue
    Display Color65536 colours
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Recyclability Potential In %58
    Width Nominal163 mm
    Carbon Footprint (Kg Co2 Eq Total Life Cycle)801.58
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]1.9012
    Air Pollution (M3) Manufacturing [A1-a3]8863.5
    Air Pollution (M3) Operational Energy Use [B6]58529
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle10364
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]1.2054
    Global Warming (Kg.Equivalent.Co2) Total Life Cycle801.58
    Global Warming (Kg.Equivalent.Co2) Distribution [A4]0.0858
    Hazardous Waste Disposed Of (Kg) Total Life Cycle100.21
    Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]15.873
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]1.3789
    Non-hazardous Waste Disposed Of (Kg) Total Life Cycle776.44
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]760.19
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]1258.1
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]10969
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1280.5
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]11665
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]22.393
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle10.019
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle12219
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]1.2115
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle718.67
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]696.66
    Water Pollution (M3) Total Life Cycle39462
    Water Pollution (M3) Distribution [A4]14.11
    Water Pollution (M3) End Of Life [C1-c4]11.151
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Downloadable ProtocolsUni-TE, TCP/IP, third party protocols, Modbus
    Vibration Resistance+/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-61 gn 9-150 Hz) IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase [A4]0.0858, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0056052
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]707 kg CO2 eq., 707.41
    Local Publishable Date2026-03-25
    Stocking FlagN
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Distribution Carbon Footprint0.0858
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution320 x 240 pixels QVGA
    Enclosure MaterialPC/PBT and PAA
    Immunity To Microbreaks7 ms
    Memory Descriptionapplication memory 16 MBback up of data 64 kB
    Operating SystemHarmony
    Processor Frequency333 MHz
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony STO & STU
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Shock Resistance15 gn 11 msIEC 60068-2-27
    Software VersionEIME v5.8.1
    Supply Voltage Limits20.4-28.8 V
    Total Lifecycle Carbon Footprint802 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2101003EN
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh919.8
    Energy Model - Installation [A5]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Height Nominal129.15 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)865.000 g
    Take-backNo
    Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle2.0021
    Air Pollution (M3) Total Life Cycle67403
    Air Pollution (M3) Distribution [A4]3.6499
    Air Pollution (M3) End Of Life [C1-c4]7.0796
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]1150
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]9211.6
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]93.873
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]707.41
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]83.413
    Net Use Of Fresh Water (M3) Total Life Cycle2.5729
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]1.1939
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]16.245
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle12229
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]1.2115
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle12948
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]1.2131
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle719.06
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]696.66
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]10.019
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1248.1
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]10969
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]22.005
    Water Eutrophication (Kg.Equivalent.P04 3-) Total Life Cycle0.2527
    Water Pollution (M3) Manufacturing [A1-a3]5736.9
    Water Pollution (M3) Operational Energy Use [B6]33699
    Customs Code8537109170

    Environment Attributes Main

    Ambient Air Temperature For Storage-20-60 °C, -20-60 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint801.58
    Circularity ProfileENVEOLI2101003EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2101003EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-50 °C
    Environmental DisclosureENVPEP2101003EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4X front panel indoor use)
    Packaging Without Single Use PlasticNo
    Relative Humidity0-85 % without condensation
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typetouch panel screen
    Range Of ProductHarmony STO & STU

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable BatteryUSER_REPLACEABLEUser replaceable

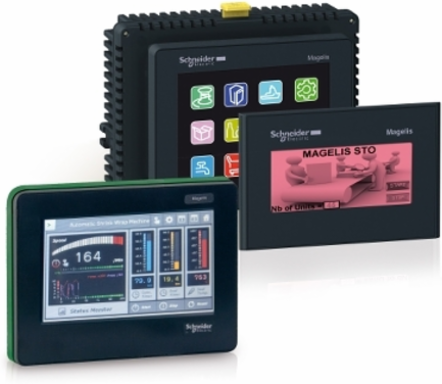

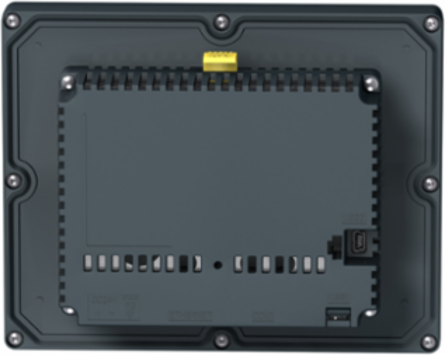

    Harmony Touchscreen HMI, 5.7 Inch QVGA, 24V DC, NEMA 4X

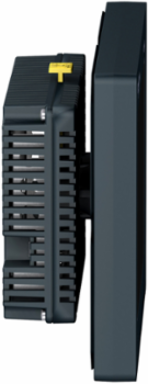

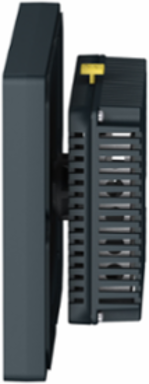

    Harmony Touchscreen HMI, 5.7 Inch QVGA, 24V DC, NEMA 4X

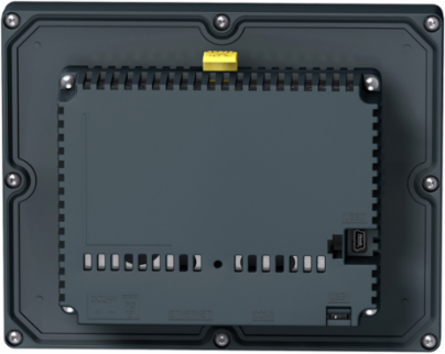

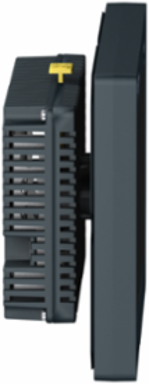

    Harmony Touchscreen HMI, 5.7 Inch QVGA, 24V DC, NEMA 4X

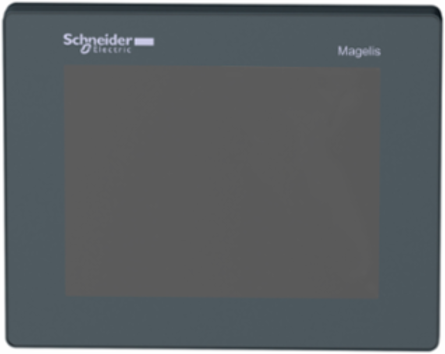

    Harmony Touchscreen HMI, 5.7 Inch QVGA, 24V DC, NEMA 4X

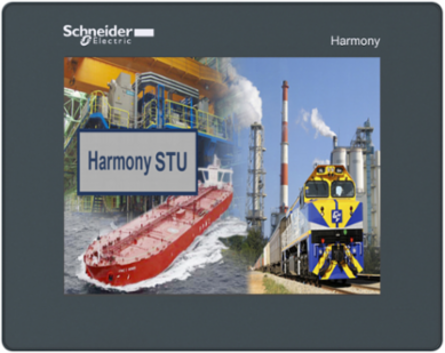

    Harmony Touchscreen HMI, 5.7 Inch QVGA, 24V DC, NEMA 4X
