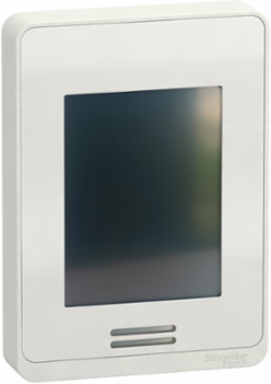

Schneider Electric TM172DCLWTHP Modicon M172 Color Touchscreen Display, 320 x 240 Resolution, 86 mm Width
- MPN: TM172DCLWTHP
- PPN: SCH-TM172DCLWTHP
CAD
$430.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Experience advanced monitoring and control with the Modicon M172 Display Color TouchScreen, designed specifically for compatibility with the M171 and M172 logic controllers. This sophisticated display module features an intuitive LCD color touchscreen that provides clear visibility with a resolution of 320 x 240 pixels, making it easy to track temperature and humidity levels with built-in sensors. With a compact design measuring 86 mm in width, 120 mm in height, and a depth of just 25 mm, it is suitable for a variety of applications while ensuring reliable operation in ambient temperatures ranging from 0 to 50 °C. Certified by multiple standards, including EAC and CE, this display module not only enhances user interaction but also adheres to stringent safety and environmental guidelines, making it a robust choice for your automation needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth25 mm
Physical Attributes
- Color
- White
Complementary Attributes
- Us Rated Supply Voltage
- 24 V AC/DC
Important Information Attributes
- Display Type
- LCD display, colour touchscreen
- Carbon Footprint Of The Distribution Phase A4
- 0.09193712383082153, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.015434834962660536, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 54 kg CO2 eq., 53.88395968948022
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon M171/M172
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1803026EN
- Pep Verification Date
- 2025-12-12
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential, In %
- 14
- Width Nominal
- 86 mm
Power Consumption In W3.2 VA, 1.3 W
Carbon Footprint Of The End Of Life Phase C1 To C40.5 kg CO2 eq., 0.4745927126358873
Carbon Footprint Of The Manufacturing Phase A1 To A39 kg CO2 eq., 8.938324852579651
Certificate AgencyEAC, CE, RCM, cTUVus
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1803026EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Display Resolution320 x 240 pixels
Product Or Component Typedisplay module
ReturnabilityYes
Supplyexternal source
Total Lifecycle Carbon Footprint63 kg CO2 eq.
UpgradeabilityYes
Warranty In Months18
Database Version2024-01
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo communicate the controlled temperature by means of input probes, pressure and many other typical loads of HVAC installations and a 100% of the time for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh113.88
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal120 mm
Environment Attributes Main
- Ambient Air Temperature For Storage
- -30-50 °C, -30-50 °C
- Product Compatibility
- logic controller M171, logic controller M172
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C
- Environmental Disclosure
- ENVPEP1803026EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-12-12
- Psr Version
- No PSR
Directives2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Take BackNo
China Rohs RegulationX
Carbon Footprint63.404249213489244
Circularity ProfileENVEOLI1803026EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1803026EN
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- display module
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Input Attributes
- Analogue Input Type
- NTC 10k type 2 temperature probe - 40...50 °C +/- 0.1 °C, NTC 10k temperature probe at 21 °C +/- 0.5 °C, humidity probe 10...90 % without condensation 10...20 % +/- 10 %, humidity probe 10...90 % without condensation 20...80 % +/- 5 %, humidity probe 10...90 % without condensation 80...90 % +/- 10 %
