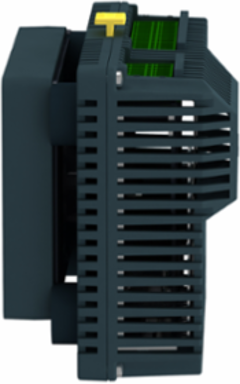

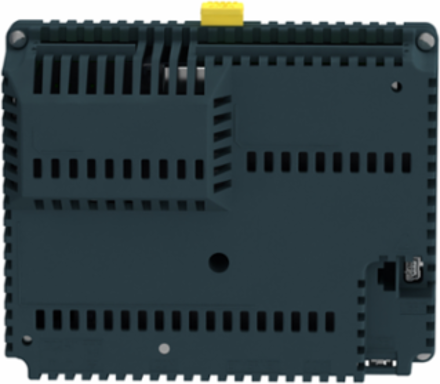

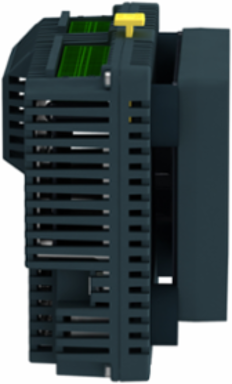

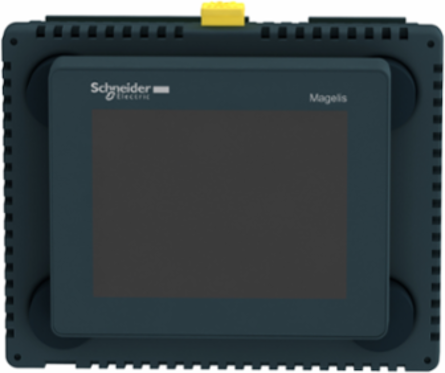

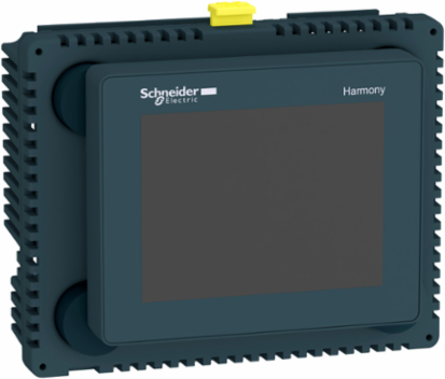

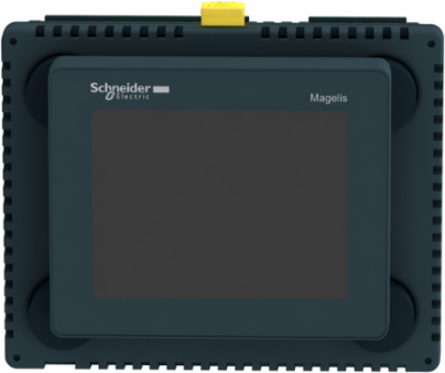

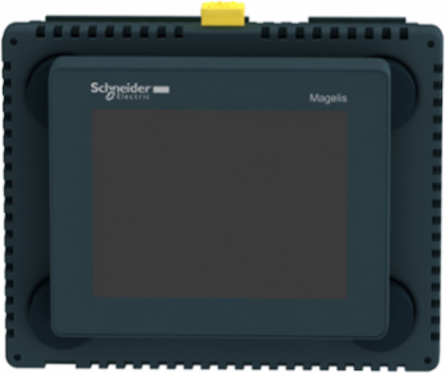

Schneider Electric HMISCU6B5 3.5 Inch Color Touch HMI Controller with 8 Digital Inputs, 4 Analog Inputs

MPN: HMISCU6B5
PPN: SCH-HMISCU6B5

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1344.60

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display and 128MB EPROM. It also has 8 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.

Features

he Schneider Electric Harmony HMISCU6B5 is an ultra-compact HMI Controller, essentially a hybrid that combines a 3.5-inch touchscreen with a built-in logic controller. This "two-in-one" design eliminates the need for a separate PLC and HMI for small machines, significantly reducing wiring, panel space, and overall system cost for Canadian industrial applications.
Integrated I/O: What are the input and output capabilities? This specific model is packed with versatile I/O for its size: 8 Digital Inputs: Includes 2 high-speed inputs (100kHz) for encoder feedback or fast sensing. 8 Digital Outputs: Includes 2 high-speed transistor outputs (100kHz) for PWM or PTO motor control. Analog I/O Bonus: Unlike many basic controllers, it also features 4 Analog Inputs (Voltage, Current, or Thermocouple/PT100) and 2 Analog Outputs, making it ideal for temperature control or variable speed drive (VFD) command signals.
The unit features a 3.5-inch TFT color touchscreen with a 320 x 240 pixel (QVGA) resolution. Despite its small size, it supports 65,000 colors and provides a vibrant interface for graphic objects, alarm displays, and mimic diagrams, ensuring that Canadian operators can clearly monitor machine status at a glance.
The Harmony SCU series uses a unique 22mm hole mounting system. Instead of a large rectangular cutout, the HMI module snaps through a standard 22mm pushbutton hole, and the controller module snaps onto the back. This "pushbutton-style" installation saves hours of layout and cutting time for panel builders.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Indonesia, Singapore, United States

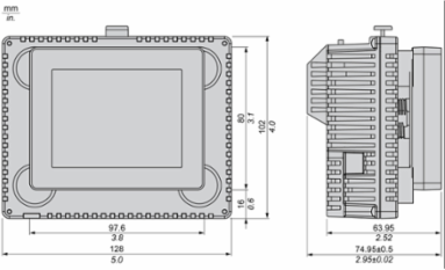

Depth	102 mm

Physical Attributes

Display Size	3.5 inch

Complementary Attributes

Integrated Connection Type	1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s), 1 Ethernet TCP/IP - RJ45, 1 USB 2.0 type mini B, 1 USB 2.0 type ACANopen master bus - SUB-D 9
Maximum Cable Distance Between Devices	shielded cable <10 m fast inputshielded cable <100 m digital inputunshielded cable <50 m digital input
Maximum Pressure	800...1114 hPa

Maximum Input Frequency	100 kHz fast input (encoder mode) A/B100 kHz fast input single phase, 100 kHz fast input pulse/direction
Maximum Output Frequency	100 kHz fast output (PTO mode)1 kHz fast output (PWM mode)

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Character Font	Chinese (simplified Chinese), ASCII, Taiwanese (traditional Chinese), Korean, Japanese (ANK, Kanji)
Downloadable Protocols	TCP/IP, CANopen, Modbus
Insulation Resistance	> 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth, > 10 MOhm between power supply and earth> 10 MOhm between the I/O and internal logic, > 10 MOhm between the I/O and internal logic, > 10 MOhm between power supply and earth
Number Of Common Point	1 fast input (HSC mode), 1 digital input
Vibration Resistance	+/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-61 gn 9-150 Hz) IEC 60068-2-6
Certificate Agency	cULus CSA 22-2 No 142, cUL 1604 Class 1 Division 2, C-tick, GOST, KCC, cULus 508, UKCA, UKEX
Carbon Footprint Of The Distribution Phase [A4]	0.0901673454276194, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.2 kg CO2 eq., 0.23937186227323212
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	616 kg CO2 eq., 615.6461538461538
Local Publishable Date	2026-01-12
Stocking Flag	N
Device Type	HMI - Graphical display unit
Traceability	Yes
Average Life Duration	7 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1405010EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Connection Pitch	3.5 mm
Display Type	backlit LED colour TFT LCD
Environmental Characteristic	corrosive gas free
Overvoltage Protection	with
Inrush Current	30 A
Isolation Between Channels And Internal Logic	500 V DC
Marking	CE
Power Consumption In W	15 W
Processor Name	ARM926EJ-S
Product Or Component Type	small touch HMI controller
Realtime Clock	built-in
Sensor Power Supply	15-28.8 V DC >= 15 V >= 5 mA = 15 V >= 2.5 mA <= 5 V <= 1 mA
Software Package	SoMachine
Supply	external source
Total Lifecycle Carbon Footprint	690 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To provide 5.7" TFT Smart Display during 10 years and maximum use rate at 13W, based on below function:& 10 - 5.7 inch Touchscreen panel& 10 - Digital In/Out +Analog In/Out& 10 - Serial comunication interface (RS-232C/485))& 10 - USB2.0 Interface (Type-A, mini-B)& 10 - Ethernet interface& 10 - CANopen master bus& 10,in accordance with the relevant standards:& 10 - FCC Class A& 10 - EN 61131-2& 10 - UL 508& 10 - IEC 61000-6-2& 10 - CSA C22.2 No 213 Class I Division 2& 10 - ANSI/ISA 12-12-01
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	1314
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; US
Height Nominal	74.95 mm

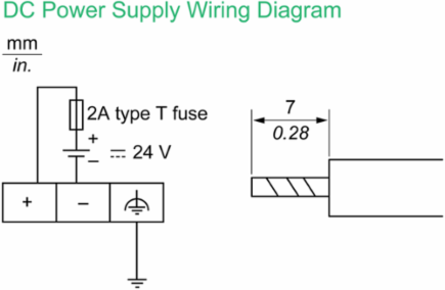

[Us] Rated Supply Voltage	24 V 20.4-28.8 V)DC
F-gas Usage Performance	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Configurable Filtering Time	0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)
Electromagnetic Compatibility	electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4, surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5, surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
Memory Description	flash NAND, 128 MB, internal data storage FRAM, 128 kBapplication run DRAM, 128 MB
Shock Resistance	147 m/s² 11 ms on DIN rail)IEC 60068-2-27, 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
View Angle Horiz X Vert	60° left, 60° right40° top, 60° bottom
Input/Output Number	2 fast input FI0...FI12 fast output FQ0...FQ1, 6 digital input DI0...DI56 digital output DQ0...DQ5
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.32586043440700974, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	73 kg CO2 eq., 73.24906824632852
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	4
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	1
Function Option	Standard
Brightness	16 levels via touch panel
Display Resolution	320 x 240 pixels QVGA
Enclosure Material	PC/PBT
Fixing Mode	by 1 nut Ø 22 mm 1...6 mm thick panel
Immunity To Microbreaks	10 ms
Isolation Between Channels	none
Local Signalling	no indicator
Number Of Pages	limited by internal memory capacity
Processor Frequency	333 MHz
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony SCU
Returnability	Yes
Software Designation	SoMachine
Software Version	v5.9.4
Sustainable Packaging	No
Touch Panel	analogue
Pep Code	ENVPEP1405010EN
Pep Verification Date	2023-11-28
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %	7
Width Nominal	128 mm
F-gas Free	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free Status	Product contains halogen above thresholds
Package Weight(Lbs)	1.169 kg
Take-back	No
Customs Code	8537109160

Environment Attributes Main

Ambient Air Temperature For Storage	-20-60 °C, -20-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	689.5506217345901
Circularity Profile	ENVEOLI1405010EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Storage Altitude	0-10000 m
Pep Verification Date	2023-11-28
Psr Version	PSR-0005-ed2-2016 03 29

Operating Altitude	<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Halogene Performance	Product contains halogen above thresholds
China Rohs Regulation	X
Silicon Free	No
Ambient Air Temperature For Operation	0-50 °C
Environmental Disclosure	ENVPEP1405010EN
Halogen Content Performance	Product contains halogen above thresholds
Nema Degree Of Protection	NEMA 4X front panel
Packaging Without Single Use Plastic	No
Relative Humidity	5-85 % without condensation
Pep Code	ENVPEP1405010EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	small touch HMI controller

Range Of Product	Harmony SCU

ETIM

ETIM 8	EC001412

ETIM 9	EC001412

Output Attributes

Analogue Output Range	-10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit0...20 mA/4...20 mA > 300 Ohm)open-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit, -10...10 V/0...10 V > 2 kOhm)short-circuit
Analogue Output Number	2 resistive load 12 bits + sign
Discrete Output Number	2 fast output (normal mode) source6 digital output source

Discrete Output Voltage	24 V DC 19.2...28.8 V)transistor24 V DC 5...30 V)relay, 220 V AC 100...250 V)relay
Discrete Output Current	2 A 4 A)5 ms opening contact digital output2 A 4 A)2 ms closing contact digital output300 mA2 ms fast output (normal mode)50 mA2 ms fast output (PWM or PTO mode)
Maximum Output Frequency	100 kHz fast output (PTO mode)1 kHz fast output (PWM mode)

Surge Protection And Filtering Attributes

Configurable Filtering Time	0 ms no filter none), 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)), 3...12 ms integrator none/run/stop)

Input Attributes

Analogue Input Number	2 analog input, 2 RTDs
Analogue Input Type	RTD - 200...600 °C 16 bitsPt 100/Pt 1000RTD - 50...200 °C 16 bitsNi 100/Ni 1000RTD - 200...760 °C 16 bits thermocouple J)RTD - 240...1370 °C 16 bits thermocouple K)RTD 0...1600 °C 16 bits thermocouple R)RTD 200...1800 °C 16 bits thermocouple B), RTD 0...1600 °C 16 bits thermocouple S)RTD - 200...400 °C 16 bits thermocouple T)RTD - 200...900 °C 16 bits thermocouple E)RTD - 200...1300 °C 16 bits thermocouple N)
Maximum Input Frequency	100 kHz fast input (encoder mode) A/B100 kHz fast input single phase, 100 kHz fast input pulse/direction
Discrete Input Number	2 fast input (normal mode) IEC 61131-2 Type 16 digital input IEC 61131-2 Type 1

Analogue Input Range	-10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, 0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %), -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm, -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm
Input Impedance	2.81 kOhm, 4.7 kOhm
Discrete Input Current	7.83 mA fast input5 mA digital
Discrete Input Voltage	24 V DC sink or source (positive/negative)
