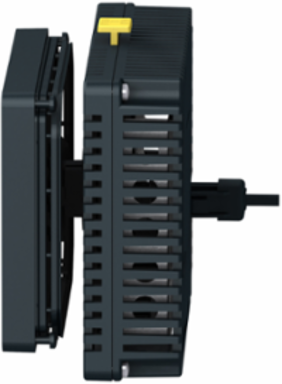

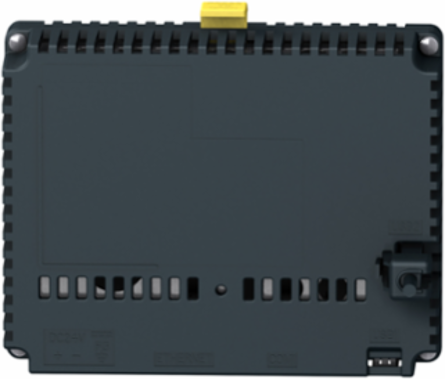

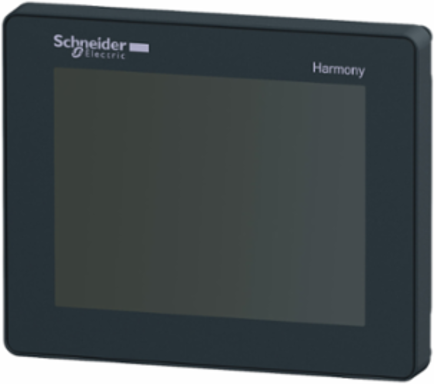

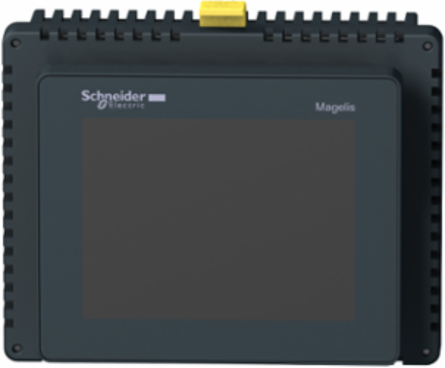

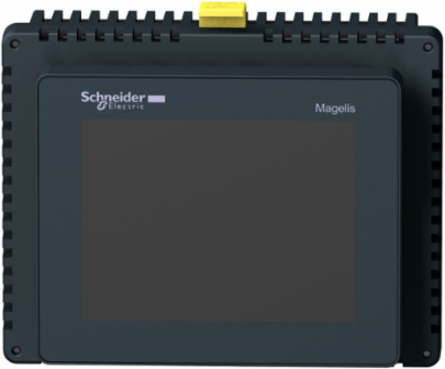

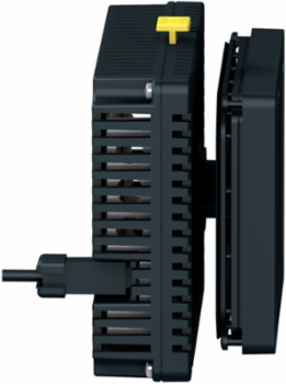

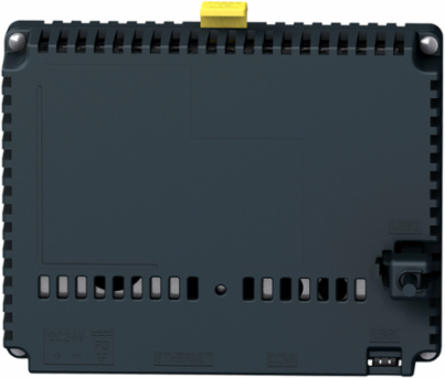

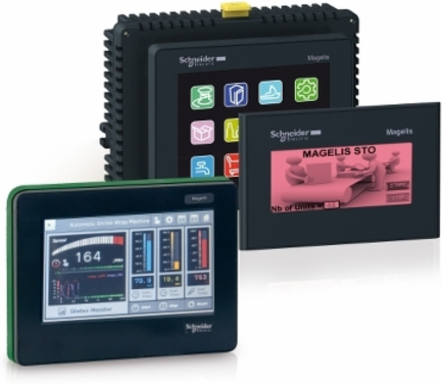

Schneider Electric HMISTU655 Harmony Touch Panel Screen 3.5 Inch QVGA, IP65, 24V DC

  • MPN: HMISTU655
  • PPN: SCH-HMISTU655
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $777.09

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

    Features

    • The Harmony HMISTU655 features an innovative modular design that mounts directly into a standard 22 mm push-button hole, eliminating the need for tedious, precise rectangular cut-outs. This significantly reduces installation time and layout labor while ensuring clean integration into your existing enclosure or control panel.
    • The 3.5-inch QVGA TFT color touchscreen provides crisp 320 x 240 pixel resolution backed by 65,536 vibrant colors and 16 levels of adjustable brightness. This allows machine operators to easily distinguish system critical statuses, alarms, and industrial graphics at a glance, minimizing oversight and operational errors on the factory floor.
    • Equipped with an RJ45 Ethernet TCP/IP port, a flexible RS-232C/RS-485 serial link, and dual USB 2.0 ports (Type A and Mini-B), this operator interface delivers native multi-protocol support. It effortlessly bridges communication via Modbus TCP/IP and Modbus Uni-TE, as well as a wide range of popular third-party automation protocols, so you do not have to worry about controller compatibility issues.
    • Built with high-durability PC/PBT engineering plastics, the front panel carries a strict IP65 and NEMA 4X indoor rating. This ensures robust protection against moisture, dust, oil, and aggressive airborne contaminants, providing long-term reliability and operational uptime in demanding food and beverage, packaging, or heavy manufacturing plants.
    • This component holds cULus, CE, UKCA, and C-Tick marks, and complies with stringent industrial safety standards including UL 508, UL 1604, and IEC 61131-2. It is additionally rated for Class 1 Division 2 (T4A or T5) hazardous locations, making it fully compliant for installation within environments where explosive gas or vapors may be present.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, Germany, France, United Kingdom, Indonesia, Mexico, United States
    Depth55.3 mm

    Physical Attributes

    Display Size
    3.5 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    1 USB 2.0 type mini B, 1 USB 2.0 type A, COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s), power supply - removable screw terminal block, 1 Ethernet - RJ45

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Character Font
    Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII, Korean, Taiwanese (traditional Chinese)
    Marking
    with Schneider logo, CE
    Vibration Resistance
    +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6+/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, 1 gn 9-150 Hz) IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase [A4]
    0.0726396992481203, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.004745455037593985
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    438 kg CO2 eq., 437.92047619047617
    Local Publishable Date
    2026-03-25
    Stocking Flag
    Y
    Device Type
    HMI - Graphical display unit
    Traceability
    Yes
    Average Life Duration
    7 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2101003EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1920
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Brightness
    16 levels
    Display Type
    QVGA TFT colour touchscreen
    Fixing Mode
    Ø 22 mm hole
    Inrush Current
    30 A
    Power Consumption In W
    6.5 W
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Harmony STO & STU
    Resistance To Electromagnetic Fields
    10 V/m IEC 61000-4-3
    Shock Resistance
    15 gn 11 msIEC 60068-2-27
    Software Package
    Vijeo Designer
    Supply
    external source
    Sustainable Packaging
    No
    Touch Panel
    analogue
    Display Color
    65536 colours
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: China
    Energy Model - Use [B6]
    Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Recyclability Potential, In %
    58
    Width Nominal
    118 mm
    F-gas Free
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free Status
    Product contains halogen above thresholds
    Package Weight(Lbs)
    563.000 g
    Take-back
    No
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Downloadable ProtocolsModbus TCP/IP, Modbus, Uni-TE, third party protocols
    Memory Descriptionapplication memory 16 MB, back up of data 64 kB
    Certificate AgencycULus, C-tick, Marine, UL class 1 Div2 T4A ou T5, UKCA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.16928944360902257, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]79 kg CO2 eq., 79.47443458646617
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution320 x 240 pixels QVGA
    Enclosure MaterialPC/PBT
    Immunity To Microbreaks10 ms
    Number Of Pageslimited by internal memory capacity
    Processor NameARM926EJ-S
    Product Or Component Typetouch panel screen
    Realtime Clockaccess to the PLC real-time clock
    ReturnabilityYes
    Software DesignationVijeo Designer
    Software VersionEIME v5.8.1
    Supply Voltage Limits20.4-28.8 V
    Total Lifecycle Carbon Footprint518 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2101003EN
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime, In Kwh569.4
    Energy Model - Installation [A5]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Height Nominal98.15 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -20-60 °C, -20-60 °C
    Operating Altitude
    <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Silicon Free
    No
    Ambient Air Temperature For Operation
    0-50 °C
    Environmental Disclosure
    ENVPEP2101003EN
    Halogen Content Performance
    Product contains halogen above thresholds
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2101003EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Ip Degree Of ProtectionIP20 IEC 60529 rear panel), IP65 IEC 60529 front panel)
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint517.6415853748371
    Circularity ProfileENVEOLI2101003EN
    Eu Rohs DirectiveCompliant By Exemption
    Nema Degree Of ProtectionNEMA 4X front panel indoor use)
    Packaging Without Single Use PlasticNo
    Relative Humidity0-85 % without condensation
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    touch panel screen
    Range Of ProductHarmony STO & STU

    ETIM

    ETIM 8
    EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable Battery
    USER_REPLACEABLE, User replaceable
