Schneider Electric HMIGTO5310 Harmony GTO Touchscreen Panel 10.4 Inch VGA 640x480 96MB EPROM

  • MPN: HMIGTO5310
  • PPN: SCH-HMIGTO5310
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $4994.23

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

    Features

    • The Schneider Electric Magelis HMIGTO5310 features a high-resolution 10.4-inch TFT 65K color touchscreen. This advanced display provides a vibrant, crisp interface for complex industrial visualizations, allowing Canadian operators to monitor intricate automation workflows, alarm histories, and real-time data trends with superior clarity compared to smaller monochrome units.
    • Engineered for maximum interoperability, this HMI is equipped with dual Ethernet TCP/IP ports, as well as RS-485 and RS-232C serial interfaces. It supports a wide range of industrial protocols, including Modbus, BACnet, and Ethernet/IP, making it an ideal central interface for multi-vendor environments common in Canadian manufacturing and water treatment facilities.
    • Built for the rigors of the factory floor, the HMIGTO5310 carries IP65 and NEMA 4X ratings when mounted in an enclosure. The front panel is resistant to chemical splashes, oils, and dust, ensuring long-term reliability in food processing, pharmaceutical, and heavy industrial settings across Canada where frequent wash-downs and airborne contaminants are prevalent.
    • The unit features integrated SD card and SDHC slots, along with two USB 2.0 ports. This allows for massive expansion of local data logging, recipe storage, and easy project backups. For maintenance teams, the USB ports simplify the process of updating firmware or extracting system logs without needing a direct laptop connection to the PLC.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, China, Costa Rica, France, United Kingdom, Indonesia, Mexico, United States
    Depth57 mm

    Physical Attributes

    Display Size10.4 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection TypeCOM1 serial link SUB-D 9 RS232C 2400...115200 bps, COM2 serial link RJ45 RS485 2400...115200 bpsCOM2 serial link RJ45 RS485 187.5 kbps Siemens MPIEthernet RJ45 10BASE-T/100BASE-TX, Ethernet RJ45 IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
    Maximum Power Consumption In W12 W when power is not supplied to external devices7 W when backlight is OFF8 W when backlight is dimmed, 17 W

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC, SI
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Brightness16 levels by touch panel, 16 levels by software
    Data Storage EquipmentSD card, <= 32 GB, SDHC card, <= 32 GB
    Local Signallingstatus LED green, steady offline, status LED green, steady operating, status LED orange, flashing software starting upstatus LED red, steady power supply (ON), status LED clear, faded power supply (OFF), COM2 LED yellow, steady data is being transmitted, COM2 LED yellow, faded no data transmissionSD card LED green, steady card is inserted, SD card LED green, faded card is not inserted or is not being accessed
    Carbon Footprint Of The Distribution Phase [A4]0.31384, 0.3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.6 kg CO2 eq., 0.589264
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]698 kg CO2 eq., 697.73
    Local Publishable Date2026-03-25
    Stocking FlagN
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution640 x 480 pixels VGA
    Enclosure MaterialPPT
    Front MaterialPPT
    Memory Descriptionflash EPROM, 96 MB
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeadvanced touchscreen panel
    Resistance To Electrostatic Discharge6 kV contact discharge IEC 61000-4-2 level 3
    Shock Resistance147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
    Software Versionv5.9.4
    Supply Voltage Limits19.2-28.8 V
    Terminal Typetouchscreen display
    Touch Panelresistive film, 1000000 cycles
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1402026EN
    Pep Verification Date2023-11-02
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
    Recyclability Potential In %26
    Width Nominal272.5 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)2.625 kg
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]4.3415
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]163.56
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]697.73
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]18488
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]1520.4
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-46.2464
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]3.2888
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]6.7259
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]107.85
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]2.048
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]5.7897
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]6.5768
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]40.2928
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2100.48
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]119.512
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1941.8
    Water Use (M3 Eq) Operational Energy Use [B6]28.25
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Character FontChinese (simplified Chinese), Japanese (ANK, Kanji), Korean, ASCII, Taiwanese (traditional Chinese)
    Downloadable ProtocolsSchneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAYMitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
    Certificate AgencycULus, CE, C-tick, KCC, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]2.5049600000000005, 3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]164 kg CO2 eq., 163.81600000000003
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Use Carbon Footprint697.73
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1402026EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2514
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Data Backed Up512 KB internal RAM SRAM)
    Display Typebacklit colour TFT LCD
    Fixing Modeby 4 screw clamps
    Inrush Current30 A
    Processor NameARM926EJ-S
    Product Mountingflush mounting
    Range Of ProductHarmony GTO
    ReturnabilityYes
    Software PackageVijeo Designer
    Supplyexternal source
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint865 kg CO2 eq.
    Touch Sensitive Zone1024 x 1024
    Vibration Resistance3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-21 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
    Display Color65536 colours
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide 12.1&quot; TFT Smart Display during 10 years and maximum use rate at 17W, based on below function:& 10- 12.1-inch Touchscreen panel.& 10- SD Card Interface& 10- Serial comunication interface (RS-422/485, RS-232C)& 10- USB Interface (Tyepe-A, minir-B)& 10- Ethernet interface
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh1489.2
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
    Height Nominal214.5 mm
    [Us] Rated Supply Voltage24 V DC
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3]0.2604
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]697.21
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]2119.68
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]119.512
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]10019
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]277.76
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-53.7656
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]1136.4
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.6297
    Terrestrial Eutrophication (Mole Of N Equiv) Distribution [A4]0.0104
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]2160
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]20430
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1941.8
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]18488
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]33.9936
    Water Use (M3 Eq) Manufacturing [A1-a3]37.0784
    Customs Code8537109160

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint864.954064
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402026EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4X front panel (indoor use)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1402026EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-55 °C
    Circularity ProfileENVEOLI1402026EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
    Operating Altitude< 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2023-11-02
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typeadvanced touchscreen panel
    Range Of ProductHarmony GTO

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Batteries & Runtime Attributes

    Removable BatteryUSER_REPLACEABLEUser replaceable
    Battery Typelithium internal RAM 100 days 5 day(s) 10 year(s)

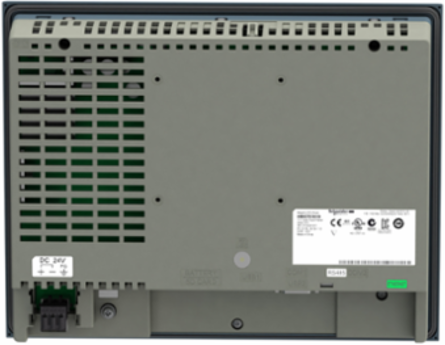

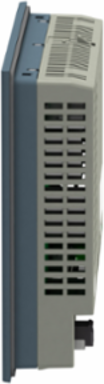

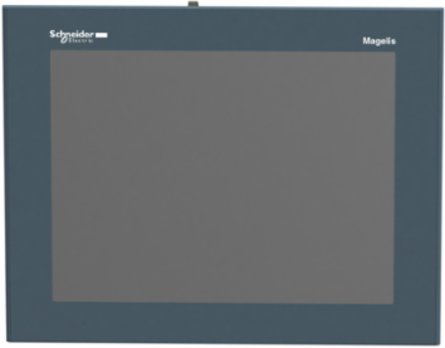

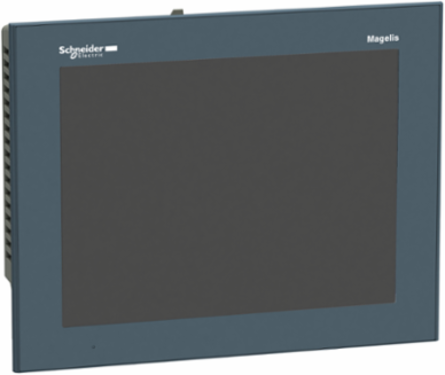

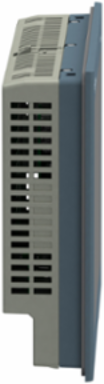

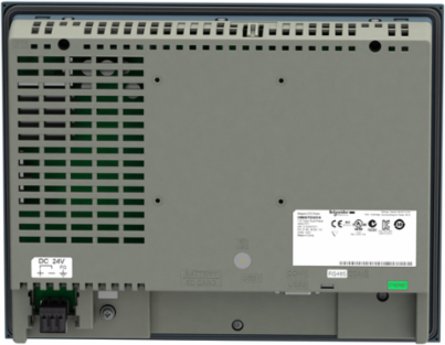

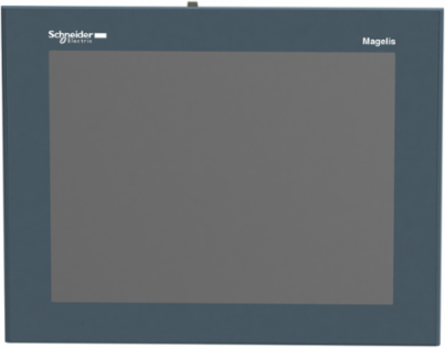

    Harmony GTO Touchscreen Panel 10.4 Inch VGA 640x480 96MB EPROM
    Harmony GTO Touchscreen Panel 10.4 Inch VGA 640x480 96MB EPROM
    Harmony GTO Touchscreen Panel 10.4 Inch VGA 640x480 96MB EPROM
    Harmony GTO Touchscreen Panel 10.4 Inch VGA 640x480 96MB EPROM
    Harmony GTO Touchscreen Panel 10.4 Inch VGA 640x480 96MB EPROM
