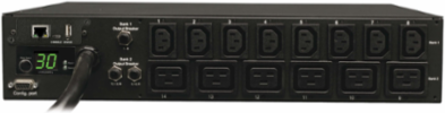

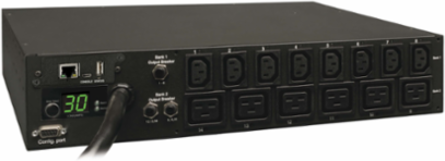

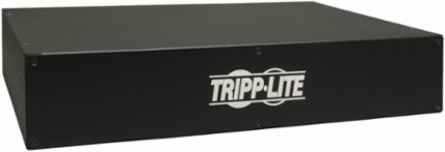

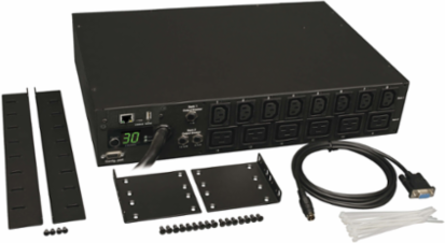

Tripp Lite PDUMH30HV19NET 5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (8 C13 & 6 C19), L6-30P input, 15ft Cord, 2U Rack-Mount, TAA
Tripp Lite PDUMH30HV19NET 5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (8 C13 & 6 C19), L6-30P input, 15ft Cord, 2U Rack-Mount, TAA
- MPN: PDUMH30HV19NET
- UPC: 037332153753
- PPN: TRP-PDUMH30HV19NET
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1977.62/ EA
Description
5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (8 C13 & 6 C19), L6-30P input, 15ft Cord, 2U Rack-Mount, TAA
Features
- 5.8kW 208/240V Switched 30A PDU, 2U rackmount, Reversible housing
- LX Platform network interface enables remote control and monitoring
- Reports voltage, frequency and load level; Front-panel digital current meter
- 14 Switched outlets (8 C13, 6 C19) and 15ft./4.5m NEMA L6-30P input cord
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported
- 2U rackmount
- Minimum Required Rack Depth (inches)
- 16
- Shipping Dimensions (hwd / in.)
- 7.80 x 16.90 x 20.00
- Unit Dimensions (hwd / in.)
- 3.5 x 17.5 x 12.5
Material of ConstructionMetal
PDU Form FactorHorizontal (2U)
Shipping Weight (lbs.)17.80
Unit Weight (lbs.)13.80
User Interface, Alerts & Controls
- Front Panel LCD Display
- 2 digit meter and pushbutton display toggle switch reports output current in amps in 3 loading segments, Bank 1 (C13 outlets #1-8), Bank 2 (C19 outlets #9-14) and Banks 1&2 combined (Outlets #1-14)
- Switches
- Pushbutton near the two digit current meter toggles reporting of output amps on Bank 1, Bank 2 and Total PDU output (Banks 1 & 2 combined)
Front Panel LEDs14 power availability LEDs confirm power off/on status for each built-in outlet; Two additional LEDs identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1&2 combined)
Input
- PDU Input Voltage
- 200; 208; 240
- Maximum Input Amps
- 30.0
- PDU Plug Type
- NEMA L6-30P
- Input Cord Length (ft.)
- 15
Recommended Electrical Service30A 208/240V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (8) C13; (6) C19
- Overload Protection
- 3 20A circuit breakers; Breaker 1 (Bank 1 C13 outlets #1-8), Breaker 2 (Bank 2 C19 outlets #9-11), Breaker 3 (Bank 2 C19 outlets #12-14)
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage200; 208; 240
Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface
Communications
- SNMP Compatibility
- Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing
Overview
- UPC Code
- 037332153753
PDU TypeSwitched
Special Features
- TVSS Grounding
- Grounding lug
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
