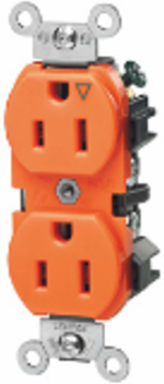

Leviton 5262-SIG Industrial 15 Amp 125 Volt Duplex Receptacle, Isolated Ground, NEMA 5-15R, Nylon
- MPN: 5262-SIG
- PPN: LEV-5262-SIG
CAD
$7.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial 15 Amp 125 Volt Duplex Receptacle, Isolated Ground, NEMA 5-15R, Nylon
Specifications
Standards and Certifications
| NEMA | WD-6 |
|---|---|
| UL498 | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
| ANSI | C-73 |
|---|---|
| UL Fed Spec WC-596 | File E13399 |
| NOM | 057 |
Material Specifications
| Clamp Nuts | Galvanized Steel |
|---|---|
| Body Material | Nylon |
| Terminal Screws | Plated Brass |
| Strap Material | Galvanized Steel |
| Face Material | Nylon |
|---|---|
| Line Contacts | Phosphor Bronze |
| Grounding Screw | Plated Steel |
| Isolated Ground System | Brass |
Mechanical Specifications
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 14-10 AWG |
|---|---|
| Torque Range | 14-16 inch pounds |
Product Features
| NEMA | 5-15R |
|---|
| Country of Origin | Mexico |
|---|
Warranty
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL94 |
|---|
| Operating Temperature | -40C-60C |
|---|
Electrical Specifications
| Grounding | Isolated Ground |
|---|---|
| Voltage | 125 Volt |
| Wire | 3 |
| Current Limiting | Full Rated Current |
| Amperage | 15 Amp |
|---|---|
| Pole | 2 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
AC Horsepower Ratings
| At Rated Voltage | 1/2 HP |
|---|
