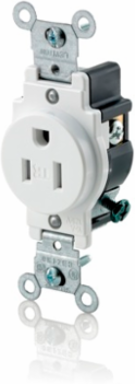

Leviton T5015-W Tamper-Resistant Single Receptacle 15 Amp 125 Volt NEMA 5-15R White
- MPN: T5015-W
- UPC: 078477381793
- PPN: LEV-T5015-W
CAD
$7.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back and Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - White
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- AC Horsepower Rating
- 1/2 HP
- Operating Temperature
- -40C to 60C
- Temperature Rise
- Max 30C after 250 cycles OL at 200% rated current
- Pole
- 2
- Wiring
- Back and Side Wire
- Body Material
- Thermoplastic Nylon
- Strap Material
- Zinc-Plated Steel
- Ground Clips Material
- Brass-Plated
- Line Contacts Material
- Brass Triple-Wipe
- Terminal Accommodation
- 14-10 AWG
- Tamper-Resistant
- Yes
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- ANSI
- C-73
- NOM
- 057
- RoHS Compliance
- True
Voltage125 VAC
Current LimitingFull Rated Current
Dielectric Voltage Withstand2000V per UL498
Device TypeSingle Receptacle Outlet
Wire3
GradeCommercial Specification Grade
Face MaterialThermoplastic Nylon
Clamp Nuts MaterialZinc-Plated Steel
Grounding ScrewBrass 8-32
Terminal ScrewsBrass 10-32
Screw Terminal Torque14-18 in-lbs
Face StyleSmooth Face
NEMA ConfigurationWD-6
CSAC22.2 No. 42, File 152105
UL498File E13399
Country of OriginMexico
