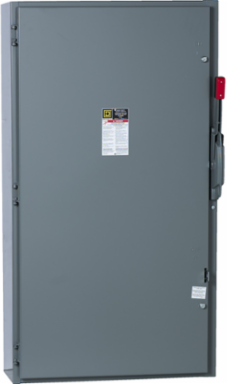

Square D CH366 Heavy Duty Fusible Safety Switch 600A 600V 3-Pole NEMA 1

MPN: CH366
UPC: 785901181828
PPN: SCH-CH366

$4172.60

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric CH366 Heavy Duty Fusible Safety Switch is engineered for robust power distribution, featuring a capacity of 600 amps at 600 volts. This three-pole switch operates under NEMA 1 ratings, making it suitable for indoor applications where dependable and safe disconnecting is crucial. With its heavy-duty construction, this safety switch is designed to withstand demanding environments, providing essential protection for electrical circuits and ensuring operational safety in various industrial settings.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States, ZZ

Depth	10.13 in

Complementary Attributes

Line Rated Current	600 A

Maximum Horse Power Rating	500 hp at 600 V AC 50/60 Hz for 3 phase motors400 hp at 480 V AC 50/60 Hz for 3 phase motors200 hp at 240 V AC 50/60 Hz for 3 phase motors

Important Information Attributes

Persona Type Ids	LC, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Motor Power Hp	200 hp at 600 V AC 50/60 Hz for 3 phase motors150 hp at 480 V AC 50/60 Hz for 3 phase motors75 hp at 240 V AC 50/60 Hz for 3 phase motors50 hp at 600 V DC, 50 hp at 250 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	192 kg CO2 eq., 191.64613852529453
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	403 kg CO2 eq., 402.86779042668866
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	none
Electrical Connection	lugs
Number Of Poles	3
Product Or Component Type	Single Throw Safety Switch
Series Name	heavy duty
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	2 025 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	90
Width Nominal	27.63 in
[Ue] Rated Operational Voltage	600 V AC/DC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509045

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	199.80563409365928, 200 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.19081500388490677, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	1 231 kg CO2 eq., 1230.7965359690943
Local Publishable Date	2026-07-29
Stocking Flag	Y
Device Type	LV equipment - LV fuse - switch
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1906
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	3/0 AWG...500 kcmil copper or aluminium
Disconnector Device Type	fusible disconnect
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Software Version	v6.2.4
Tightening Torque	550-550 lbf.in 177-253 mm²550-550 lbf.in 53.49-152.0 mm² (1/0 AWG...300 kcmil)
Pep Code	ENVPEP2503029EN
Pep Verification Date	2025-03-01
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	50.25 in
Certificate Agency	CSA
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	78.93 kg
Warranty (In Months)	18

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503029EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-01
Psr Version	PSR-0005-ed3-2023 06 06

Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Carbon Footprint	2025.3069140186217
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 1 steel
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503029EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
