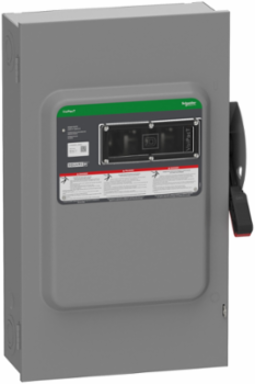

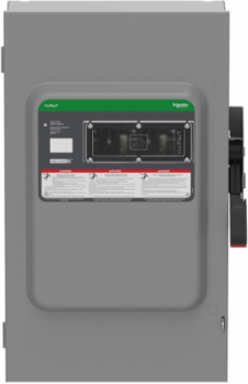

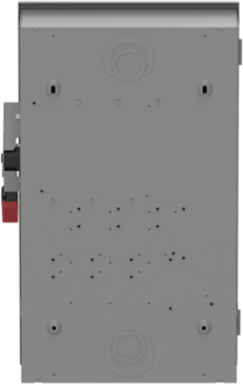

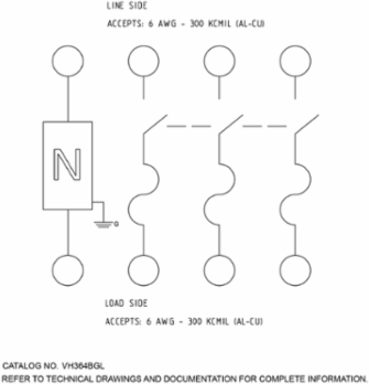

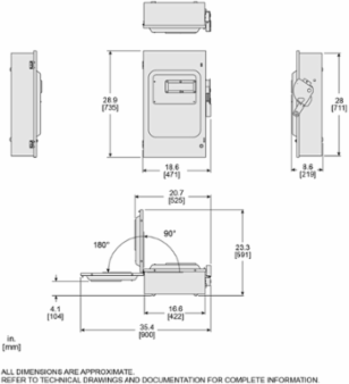

Square D VH364BGL Heavy Duty Safety Switch, 3 Pole, 200A, 600V, NEMA 1, Fused
- MPN: VH364BGL
- PPN: SCH-VH364BGL
CAD
$1506.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust performance in power distribution applications, this heavy-duty safety switch from Schneider Electric ensures reliable operation and safety in industrial settings. With a three-pole configuration and a capacity of 200 amps at 600 volts, it provides dependable disconnect functionality where it matters most. Designed to meet NEMA 1 standards, this fused safety switch is ideal for indoor use, offering effective protection against overloads and short circuits. Its durable construction ensures longevity and supports a wide range of electrical systems, making it an essential component for any heavy-duty electrical installation.
Features
- Housed in a rugged NEMA 1 steel enclosure with a powder-coated finish, this 200-amp safety switch is engineered for high-performance service entrance or branch circuit protection. The heavy-duty mechanical architecture ensures long-term durability in commercial warehouses and manufacturing plants, providing a reliable manual disconnect that stands up to frequent cycling and demanding physical wear.
- This 3-pole, 4-wire switch is fully rated for 600V AC/DC, making it the ideal solution for protecting large motor loads, commercial HVAC systems, and heavy industrial equipment. The high voltage overhead ensures your facility s electrical infrastructure can handle substantial power draws while providing a safe, centralized point for rapid circuit isolation during maintenance or emergencies.
- Factory-installed with a dedicated ground bar and neutral assembly, the VH364BGL simplifies the wiring process for commercial electricians by eliminating the need to source and install separate terminal kits. This all-in-one internal configuration speeds up installation times and guarantees a secure, low-impedance path to ground, ensuring your system remains fully compliant with NEC and local building code requirements.
- Featuring Schneider s signature visible blade design, this switch allows technicians to visually confirm that the electrical contacts are fully separated when the handle is in the "OFF" position. This critical safety feature provides an extra layer of protection beyond the handle indicator, reducing the risk of accidental contact with live parts and ensuring absolute peace of mind during Lockout/Tagout (LOTO) safety procedures.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 8.6 in |
|---|
Complementary Attributes
| Line Rated Current | 200 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 50 hp at 600 V DC, 50 hp at 480 V AC 50-60 Hz for 3 phase motors, 125 hp at 480 V AC 50-60 Hz for 3 phase motors60 hp at 600 V AC 50-60 Hz for 3 phase motors, 150 hp at 600 V AC 50-60 Hz for 3 phase motors, 40 hp at 250 V DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 59 kg CO2 eq., 59.424207170592375 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 145 kg CO2 eq., 144.9134911837968 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2345 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 6 AWG...250 kcmil copper or aluminium |
| Device Composition | neutral (factory bonded) |
| Electrical Connection | lugs |
| Fuse Type | J |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 272 kg CO2 eq. |
| Pep Code | ENVPEP2303037EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 28.93 in |
| Certificate Agency | UL listed file E2875 |
| Short-circuit Current | 200 kA for J |
| Package Weight(Lbs) | 24.7 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 7.456202633548866, 7 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.38535143792524496, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 60 kg CO2 eq., 59.54437565158782 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Tightening Torque | 275-275 lbf.in 13.3-127 mm² (6 AWG...250 kcmil) |
| Wiring Configuration | 4-wire (3PH + N) |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600 V and rated current 200 A.This function is provided for 20 years.The product qualifies for the standards UL50E Type 12,UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 16.61 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 271.72362807745105 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303037EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303037EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
