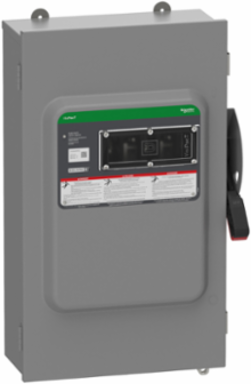

Square D VH364AWKGL Heavy Duty Safety Switch, 600V, 200A, 3 Pole, NEMA 12, Viewing Window
- MPN: VH364AWKGL
- PPN: SCH-VH364AWKGL
CAD
$1937.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered by Schneider Electric, this heavy-duty safety switch ensures reliable power distribution and enhances operational safety in demanding environments. Rated for 600V and 200A, the three-pole design allows for efficient control over electrical circuits, making it suitable for a variety of industrial applications. The NEMA 12 enclosure provides protection against dust and moisture, while the inclusion of a viewing window facilitates easy monitoring of the switch state without compromising safety. This safety switch is a crucial component for effective disconnecting solutions in heavy-duty operations.
Features
- This VisiPacT series safety switch features a factory-installed viewing window that allows for instant, clear confirmation of the blade status while the door remains closed and locked. This eliminates unnecessary exposure to arc flash risks, significantly improving facility safety and speeding up routine lock-out/tag-out (LOTO) visual audits.
- Built with a heavy-duty NEMA 12 galvannealed steel enclosure and a gray baked enamel finish, this unit is engineered specifically for grueling manufacturing environments. It acts as an impenetrable barrier against falling dirt, circulating dust, lint, fibers, and dripping non-corrosive liquids, preventing internal component degradation and avoiding unplanned downtime.
- This 3-pole, 3-wire fusible disconnect supports up to 200 Amps at 600 VAC/VDC, handling massive motor loads up to 150 hp at 600V AC. The quick-make, quick-break operating mechanism prevents contact arcing, ensuring crisp electrical separation and an extended mechanical lifespan that outperforms standard duty alternatives.
- Designed to enforce strict plant safety protocols, the switch features a dual cover interlock system that mechanically prevents the door from being opened when the switch is in the "ON" position, and blocks the handle from turning "ON" while the cover is open. Backed by UL98, CSA C22.2 No. 4, and NOM certifications, it provides a fully compliant solution for heavy industrial applications and is suitable for use as service entrance equipment when paired with the proper grounding or neutral kits.
Documentation & Downloads

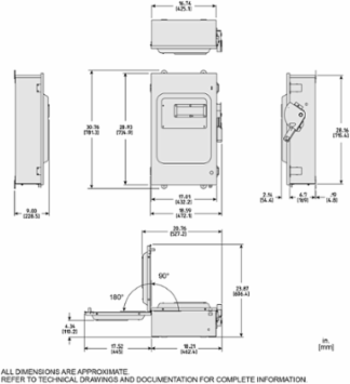

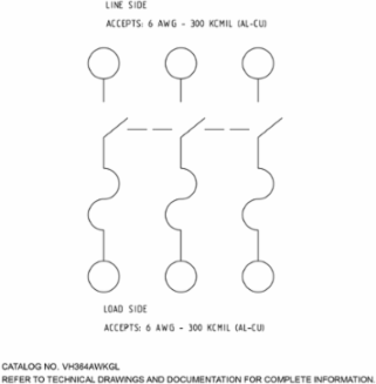

Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 9.02 in |
|---|
Complementary Attributes
| Line Rated Current | 200 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R or J |
| Short-circuit Current | 10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 60 kg CO2 eq., 60.145958674688636 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 147 kg CO2 eq., 146.6735740726688 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2345 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 6 AWG...250 kcmil copper or aluminium |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Tightening Torque | 275-275 lbf.in 13.3-127 mm² (6 AWG...250 kcmil) |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2303037EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 28.93 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Motor Power Hp | 50 hp at 600 V DC, 50 hp at 480 V AC 50-60 Hz for 3 phase motors, 125 hp at 480 V AC 50-60 Hz for 3 phase motors60 hp at 600 V AC 50-60 Hz for 3 phase motors, 150 hp at 600 V AC 50-60 Hz for 3 phase motors, 40 hp at 250 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 7.546763799138529, 8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3900318197623937, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 60 kg CO2 eq., 59.54437565158782 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | factory installation |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 274 kg CO2 eq. |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600 V and rated current 200 A.This function is provided for 20 years.The product qualifies for the standards UL50E Type 12,UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 17.01 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 25 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 274.30070401784616 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303037EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2303037EN |
| Nema Degree Of Protection | NEMA 12 galvannealed steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
