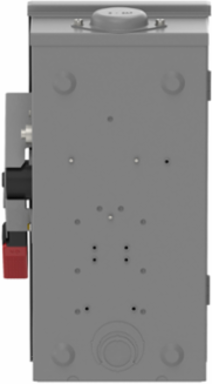

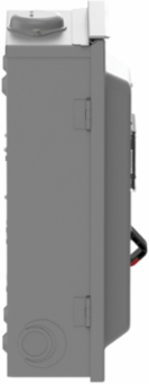

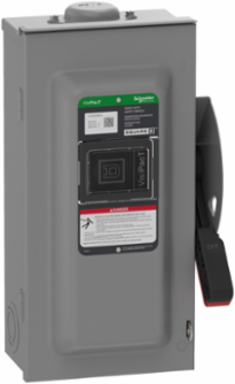

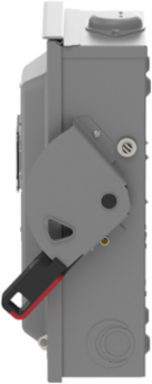

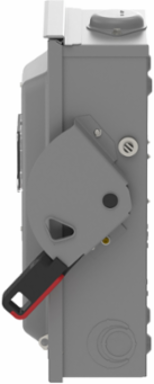

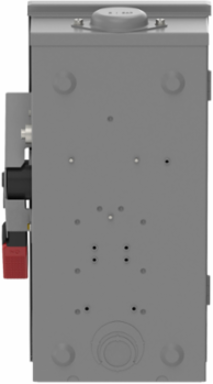

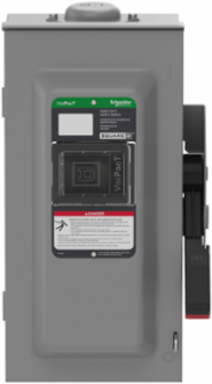

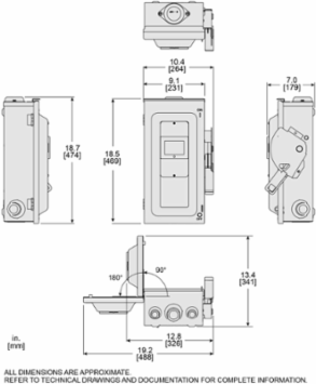

Square D VH362RBGL Heavy Duty Safety Switch, 600V, 60A, 3-Pole, NEMA 3R
- MPN: VH362RBGL
- PPN: SCH-VH362RBGL
CAD
$748.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust power management, this heavy-duty safety switch from Schneider Electric is designed to handle demanding electrical applications with ease. With a rating of 600V and a capacity of 60A, it features a three-pole configuration that ensures efficient disconnecting capability. Its NEMA 3R enclosure provides reliable protection against environmental factors, making it suitable for both indoor and outdoor installations. This safety switch is an essential component for enhancing the safety and reliability of your power distribution system.
Features
- Engineered with a factory-installed, impact-resistant viewing window, this heavy-duty disconnect allows facility electricians to instantly confirm the internal blade position visually. This critical safety feature drastically reduces exposure to dangerous arc flash hazards during routine inspections and greatly accelerates OSHA-compliant lockout/tagout (LOTO) procedures.
- Housed in a rugged, Type 3R rated galvannealed steel enclosure, this 3-pole disconnect switch is heavily shielded against rain, sleet, and ice formation. This guarantees long-lasting, rust-resistant performance for exterior installations, making it the perfect weatherproof solution for commercial HVAC rooftop units, pump stations, or outdoor service entrances.
- Rated for 60 Amps at 600V AC/DC, this fusible safety switch delivers up to a massive 200kA Short Circuit Current Rating (SCCR) when paired with Class R or field-modified Class J current-limiting fuses. By providing three times the mechanical durability of standard NEMA switches, it offers unmatched protection for expensive 3-phase industrial motors, preventing catastrophic equipment damage and minimizing costly production downtime.
- Featuring a highly responsive quick-make, quick-break operating mechanism, this switch rapidly snaps the contacts to minimize dangerous electrical arcing and extend the life of the unit. The integrated dual cover interlock specifically blocks the enclosure door from being opened while the switch is energized and prevents the switch from being thrown ON while the door is open ensuring strict UL98 safety compliance and protecting maintenance crews from high-voltage shocks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth7.038 in
Complementary Attributes
- Line Rated Current
- 60 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R or J
- Tightening Torque
- 50-50 lbf.in (3 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG)50-50 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG)
- Carbon Footprint Of The Distribution Phase [A4]
- 2.3060161033404847, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.27181403539578647, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 11 kg CO2 eq., 10.925054451802781
- Local Publishable Date
- 2026-06-23
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2345
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge

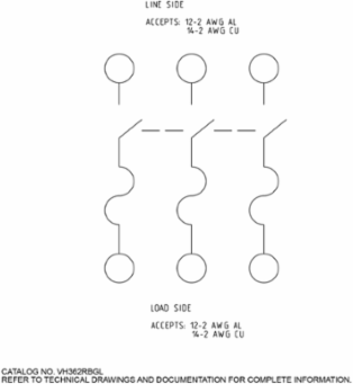

- 14 AWG...3 AWG copper12 AWG...3 AWG aluminium
- Device Composition
- field installed kit available
- Electrical Connection
- lugs
- Number Of Poles
- 3
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 79 kg CO2 eq.
- Pep Code
- ENVPEP2303036EN
- Pep Verification Date
- 2023-10-24
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 18.456 in
- Certificate Agency
- UL listed file E2875
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Motor Power Hp15 hp at 480 V AC 50-60 Hz for 3 phase motors, 30 hp at 480 V AC 50-60 Hz for 3 phase motors, 15 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 600 V AC 50-60 Hz for 3 phase motors, 30 hp at 600 V DC
Short-circuit Current10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J
Carbon Footprint Of The End-of-life Phase [C1 To C4]18 kg CO2 eq., 18.42764009545031
Carbon Footprint Of The Manufacturing Phase [A1 To A3]47 kg CO2 eq., 46.9511495184534
Local Data StatusPublishable
Pre Comm Date2023-04-05
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationheavy application
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Servicesfactory installation
Sustainable PackagingYes
Wiring Configuration3-wire
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %83
Width Nominal9.08 in
[Ue] Rated Operational Voltage600 V AC/DC
Package Weight(Lbs)8 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2303036EN
- Nema Degree Of Protection
- NEMA 3R galvannealed steel
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2023-10-24
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Carbon Footprint78.88167420444276
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2303036EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
