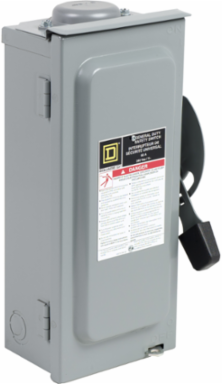

Square D CD322NRB General Duty Safety Switch, 60A, 120/240V AC, 3 Poles, 30HP
Square D CD322NRB General Duty Safety Switch, 60A, 120/240V AC, 3 Poles, 30HP
- MPN: CD322NRB
- UPC: 785901404989
- PPN: SCH-CD322NRB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$412.89/ EA
Description
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminium. This switch is certified to UL standards Dinemsions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switchs come with an 18 months warranty.
Specifications
Complementary
- Disconnector Device Type
- fusible disconnect
- Device Mounting
- surface
- Electrical Connection
- lugs
- Width
- 7.45 in
- Device Composition
- neutral (factory installed)
- Number Of Poles
- 3
Height14.88 in
Tightening Torque35-35 lbf.in 2.08-5.26 mm² AWG 14...AWG 10) || 45-45 lbf.in 8.37-8.37 mm² AWG 8) || 45-45 lbf.in 12.3-21.12 mm² AWG 6...AWG 4) || 50-50 lbf.in 26.67-26.67 mm² AWG 3)
Awg GaugeAWG 14...AWG 3 copper or aluminum
Depth4.87 in
Short-Circuit Current100 kA maximum cartridge
[Ue] Rated Operational Voltage120/240 V AC
Specifications
- Series Name
- general duty
Product Or Component TypeSingle Throw Safety Switch
Environment
- Product Certifications
- CSA
Nema Degree Of ProtectionNEMA 3R galvannealed steel
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
