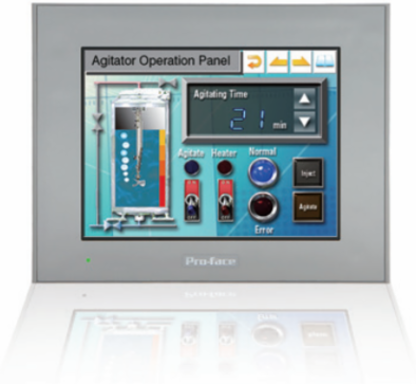

Pro-Face PFXGP4401TAD GP-4401T 7.5" TFT HMI

MPN: PFXGP4401TAD
PPN: SCH-PFXGP4401TAD

$4879.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

GP-4401T: 7.5" TFT Color Touch (Analog), VGA, 2x Serial, Ethernet, 2x USB, SD, 24VDC, UL/CE

Documentation & Downloads

Specifications

Additional

Input Voltage	DC 24V (19.2 to 28.8V limits)
Operating Temperature	0 C to 55 C (32 F to 131 F)
Altitude Rating	2000 meters or lower (800 to 1114 hPa)
Noise Immunity	Noise Voltage 1000 Vp-p, Pulse Duration 1 s
Vibration Resistance	IEC/EN61131-2 compliant, 5 to 150 Hz, 9.8 m/s2
Ingress Rating	Equivalent to IP65f, NEMA 4x/13
Display Type	TFT Color LCD
Display Colors	65,536 Colors (No blink), 16,384 Colors (Blink)
Touch Screen	Resistive film analog, 1024 x 1024 resolution
SD Card Slot	Supports SD/SDHC up to 32 GB
Ethernet	10BASE-T/100BASE-TX (IEEE802.3i/802.3u)
Brightness Controls	16 levels
Backup Memory	512 KB SRAM with battery backup
Weight	1.2 kg (2.6 lb)
Certifications	CE, UL Listed, RoHS, ABS, DNV

Power Consumption	12 W or less
Storage Temperature	-20 C to 60 C (-4 F to 140 F)
Humidity	10 to 90% RH (no condensation)
ESD Immunity	6 kV Contact Discharge (IEC/EN61000-4-2 Level 3)
Shock Resistance	IEC/EN 61131-2 compliant, 147 m/s2
Display Size	7.5 in
Graphics Resolution	640 x 480 pixels (VGA)
Display Area	153.7 x 115.8 mm (6.05 x 4.56 in)
USB Ports	1 x USB Type-A (2.0), 1 x USB mini-B (2.0)
Serial Ports	2 (COM1 RS-232C, COM2 RS-422/485)
Backlight	White LED
Programming Memory	32 MB FEPROM
Cooling	Natural air circulation
Dimensions	218 x 174 x 60 mm (8.58 x 6.85 x 2.36 in)
