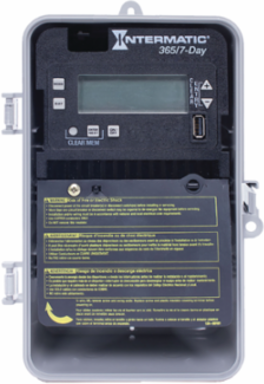

Intermatic ET2715CP 7-Day/365-Day Electronic Timer, 120-277 VAC, SPDT
Intermatic ET2715CP 7-Day/365-Day Electronic Timer, 120-277 VAC, SPDT
- MPN: ET2715CP
- UPC: 078275148130
- PPN: INT-ET2715CP
- UNSPSC: 39122208
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$362.03/ EA
Description
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. They come in standard 7-day versions.
Features
- 100-hour supercapacitor eliminates the need for batteries
- Up to 96 set points or events
- Up to 50 holiday blocks with schedule capabilities
- Automatic input voltage selection from 120 to 277 VAC, 60 Hz
- Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
- Configurable outputs allow the control of various voltages and applications
- Relays incorporate zero-crossing technology to extend the life of the control
- Non-volatile EEPROM memory protects programming indefinitely
- LED compatible
- USB port makes transferring and saving of schedules easy
Specifications
Specifications
- Input Voltage Rating Range(s)
- 120-277 VAC, 60 Hz
- Color
- Gray
- Marketing Description
- The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application. They come in standard 7-day versions.
- Length
- NA NA
- Width
- 6.5 in
- Country of Origin
- Mexico
Warranty Period2-Year limited
ApplicationsIndoor Lighting Control;Machinery & Pump Controls;Timing/Scheduling ON/OFF
Height10 in
WeightNA lbs
Depth4 in
