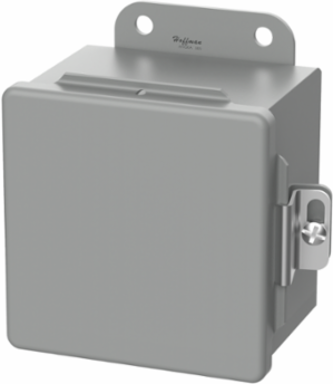

nVent Hoffman A1210CH Continuous Hinge Junction Box 12x10x5 Inch, NEMA 12, Gray, Steel
- MPN: A1210CH
- UPC: 783510554200
- PPN: HOF-A1210CH
- UNSPSC: 39121303
CAD
$229.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 12 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure Clamps CH Type 12, A1210CH item measures 12x10x5 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
- Size
- 12 x 10 x 5 in
- Finish
- ANSI 61 gray polyester powder paint
- Color
- Gray (ANSI 61)
- Mounting (G x H)
- 324 x 203 mm, external welded-on wall brackets
- Width
- 254 mm
- Depth
- 127 mm
- Hinge
- Continuous hinge
- Gasket
- Oil-resistant
- Weldnuts
- Provided for mounting optional panels and terminal block kits (≥ 6.00 x 4.00 in)
MaterialSteel
Protection RatingNEMA Type 12, IP65
Weight11.2 lb
Overall Dimensions343 x 278 mm
Height305 mm
Thickness1.9 mm
ClosureScrew-down door clamps
Door FeatureBonding provision
