Continuous Hinge Junction Box, Type 4, 16 x 14 x 8 Inch, Gray Steel
nVent Hoffman

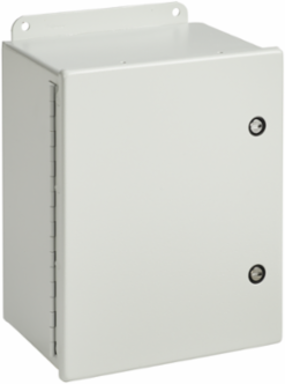

nVent Hoffman A16148CHFL Continuous Hinge Junction Box, Type 4, 16 x 14 x 8 Inch, Gray Steel

  • MPN: A16148CHFL
  • UPC: 783510148959
  • PPN: HOF-A16148CHFL
  • UNSPSC: 39121324

CAD

$482.46

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A16148CHFL item measures 16.00x14.00x8.00 inches with a material of Steel colored Gray.

Features

  • Seams continuously welded and ground smooth
  • Continuous hinge
  • Bonding provision on door
  • External welded-on mounting brackets for easy installation
  • Oil-resistant gasket
  • Quarter-turn slotted latches
  • Seamless foam-in-place gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger

Documentation & Downloads

Specifications

Additional

Size
16.00 x 14.00 x 8.00 in
Width
356 mm
Overall Dimensions
445 x 366 mm
Material
Steel
IP Rating
IP66
Protection Rating
NEMA Type 12
Thickness
1.9 mm
Type
4
Seams
Continuously welded and ground smooth
Latch Type
Quarter-turn slotted
Mounting Brackets
External welded-on
Panel Mounting Size
6.00 x 4.00 in (152 x 102 mm) and larger
Height406 mm
Depth203 mm
Latch Quantity2
FinishPowder Coated, RAL 7035 gray polyester powder paint inside and out
NEMA RatingType 12 Indoor, dust-resistant
ColorGray, RAL 7035
Weight22.6 lbs
Gauge14
Hinge TypeContinuous
GasketOil-resistant, seamless foam-in-place
Bonding ProvisionOn door
