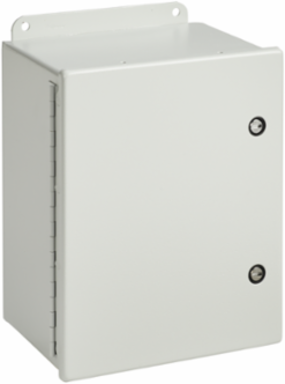

nVent Hoffman A1212CHFL Continuous Hinge Junction Box, 12x12x6 Inch, Gray Steel, NEMA Type 12
- MPN: A1212CHFL
- UPC: 783510148874
- PPN: HOF-A1212CHFL
- UNSPSC: 39121324
CAD
$315.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A1212CHFL item measures 12.00x12.00x6.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Quarter-turn slotted latches
- Seamless foam-in-place gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 305
- Protection Rating
- NEMA Type 12
- Color Code
- RAL 7035
- Mounting (G x H)
- 324 x 254
- Latch Quantity
- 2
- Weight
- 14.1
- Size
- 12.00x12.00x6.00 in
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)305
Depth (D)152
FinishPowder Coated
Thickness (T)1.9
Overall Dimensions (L x W)343 x 314
IP RatingIP66
MaterialSteel
ColorGray
