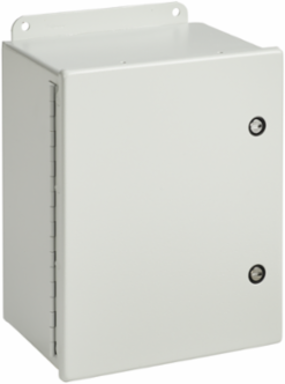

nVent Hoffman A1210CHFL Continuous Hinge Junction Box, 12 x 10 x 5 Inch, Gray, Steel, NEMA Type 12
- MPN: A1210CHFL
- UPC: 783510148850
- PPN: HOF-A1210CHFL
- UNSPSC: 39121324
CAD
$300.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A1210CHFL item measures 12.00x10.00x5.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Quarter-turn slotted latches
- Seamless foam-in-place gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 254 |
| Protection Rating | NEMA Type 12 |
| Color Code | RAL 7035 |
| Mounting (G x H) | 324 x 203 |
| Latch Quantity | 2 |
| Weight | 11 |
| Size | 12.00x10.00x5.00 in |
| NEMA Rating | 12 Indoor, dust-resistant |
| Height (H) | 305 |
|---|---|
| Depth (D) | 127 |
| Finish | Powder Coated |
| Thickness (T) | 1.9 |
| Overall Dimensions (L x W) | 343 x 264 |
| IP Rating | IP66 |
| Material | Steel |
| Color | Gray |
