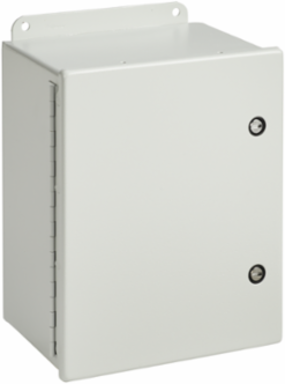

nVent Hoffman A1614CHFL Continuous Hinge Junction Box 16.00x14.00x6.00 Inch, Gray Steel, NEMA Type 12
- MPN: A1614CHFL
- UPC: 783510148942
- PPN: HOF-A1614CHFL
- UNSPSC: 39121324
CAD
$442.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A1614CHFL item measures 16.00x14.00x6.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Quarter-turn slotted latches
- Seamless foam-in-place gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
- Size
- 16.00 x 14.00 x 6.00 in
- Color
- Gray
- Finish
- Powder Coated
- Latch Quantity
- 2
- IP Rating
- IP66
- Width
- 356 mm
- Height
- 406 mm
- Mounting (G x H)
- 425 x 305 mm
- Hinge Type
- Continuous hinge
- Gasket Material
- Oil-resistant, seamless foam-in-place
- Bonding Provision
- On door
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
Thickness1.9 mm
Weight20.1 lb
Protection RatingNEMA Type 12
Depth152 mm
Overall Dimensions (L x W)445 x 366 mm
Color CodeRAL 7035
Mounting BracketsExternal welded-on
Latch TypeQuarter-turn slotted
Weldnuts ProvidedFor mounting panels and terminal block kits size 6.00 x 4.00 in and larger
