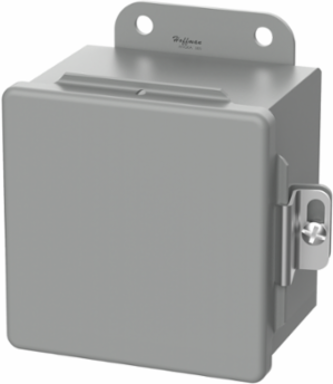

nVent Hoffman A604CH Continuous Hinge Junction Box, 6 x 4 x 3 Inch, Gray, Mild Steel, NEMA Type 12
- MPN: A604CH
- UPC: 783510553708
- PPN: HOF-A604CH
- UNSPSC: 39121303
CAD
$117.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 12 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure Clamps CH Type 12, A604CH item measures 6x4x3 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 12 Indoor, dust-resistant
- Size
- 6.00 x 4.00 x 3.00 in
- Finish
- ANSI 61 gray polyester powder paint
- Thickness
- 1.52 mm (16 gauge steel)
- Color
- Gray (ANSI 61)
- Width
- 102 mm
- Hinge Type
- Continuous hinge
- Gasket
- Oil-resistant
- Bonding Provision
- On door
IP RatingIP65
MaterialSteel, Mild Steel
Weight2.5 lb
MountingExternal welded-on brackets, 171 x 51 mm
Depth76 mm
Height152 mm
Door ClampsScrew-down
SeamsContinuously welded and ground smooth
Weldnuts ProvisionFor mounting optional panels and terminal block kits (≥ 6.00 x 4.00 in)
