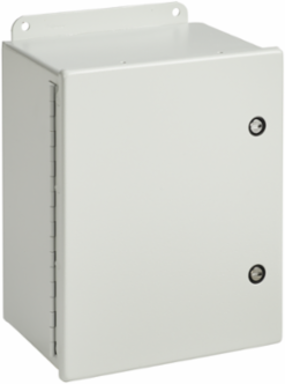

nVent Hoffman A606CHFL Continuous Hinge with 1/4-Turn Latch Type 4, 6.00x6.00x4.00, Gray, Steel

Continuous Hinge with 1/4-Turn Latch Type 4, 6.00x6.00x4.00, Gray, Steel
  • MPN: A606CHFL
  • UPC: 783510148751
  • PPN: HOF-A606CHFL
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$180.92/ EA

Description

Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A606CHFL item measures 6.00x6.00x4.00 inches with a material of Steel colored Gray.

Features

  • Seams continuously welded and ground smooth
  • Continuous hinge
  • Bonding provision on door
  • External welded-on mounting brackets for easy installation
  • Oil-resistant gasket
  • Quarter-turn slotted latches
  • Seamless foam-in-place gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
152
Protection Rating
NEMA Type 12
Color Code
RAL 7035
Mounting (G x H)
171 x 102
Latch Quantity
1
Weight
4
Size
6.00x6.00x4.00 in
NEMA Rating
12 Indoor, dust-resistant
Height (H)152
Depth (D)102
FinishPowder Coated
Thickness (T)1.52
Overall Dimensions (L x W)191 x 163
IP RatingIP66
MaterialSteel
ColorGray
